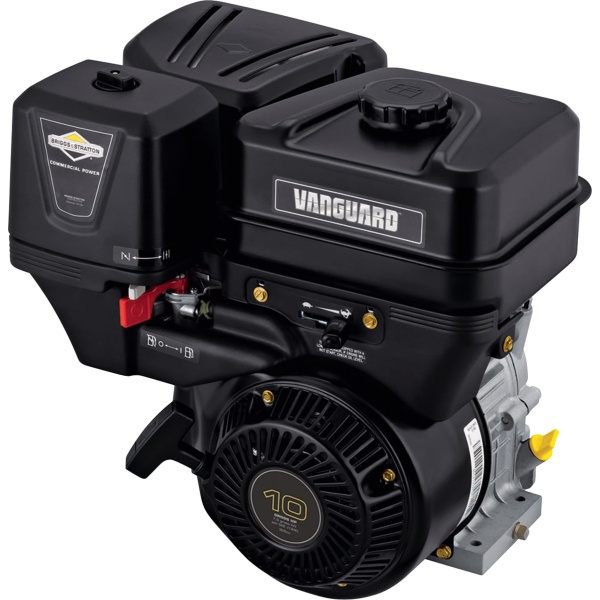

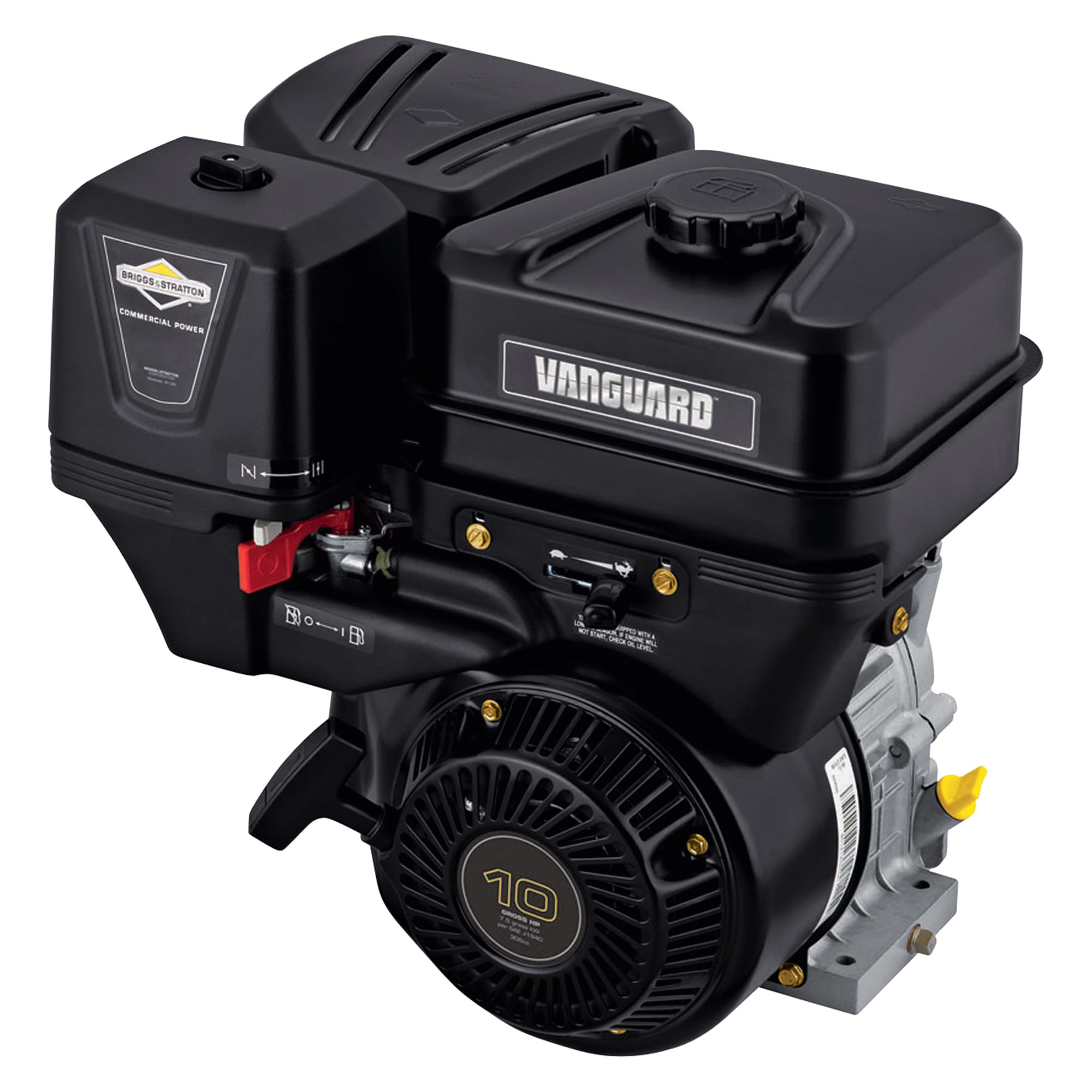

Briggs Stratton Vanguard OHV Horizontal Engine
| Brand | Briggs Stratton |
| Manufacturer’s Warranty | 36 months parts / 36 months labor |
| Ship Weight | 57.1 lbs |
| Engine Displacement | 305 cc |
| Engine Type | Vanguard OHV |
| Start Type | Recoil |
| Shaft Diameter | 1 in |
| Shaft Length | 3.65 in |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.25 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 7/16-20 |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| PTO Height | 4.17 in |
| Bearing Type | Dual ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron sleeve |
| Cooling System | Air cooled |
| Bore | 3.12 in |
| Stroke | 2.44 in |
| Air Cleaner Type | High-mount cartridge w/pre-cleaner |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.6 qt |
| Fuel Filter | Yes |
| Oil Capacity | 0.875 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Mechanical |
| Carburetor | Float |
| Throttle Control | Manual, remote, adjustable (constant speed) |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 3.625, 5, 6.5 in |
| Mounting Base Length | 7.68 in |
| Mounting Base Width | 3.93 in |
| Dimensions L x W x H (in.) | 12.46 x 16.43 x 15.96 in |
