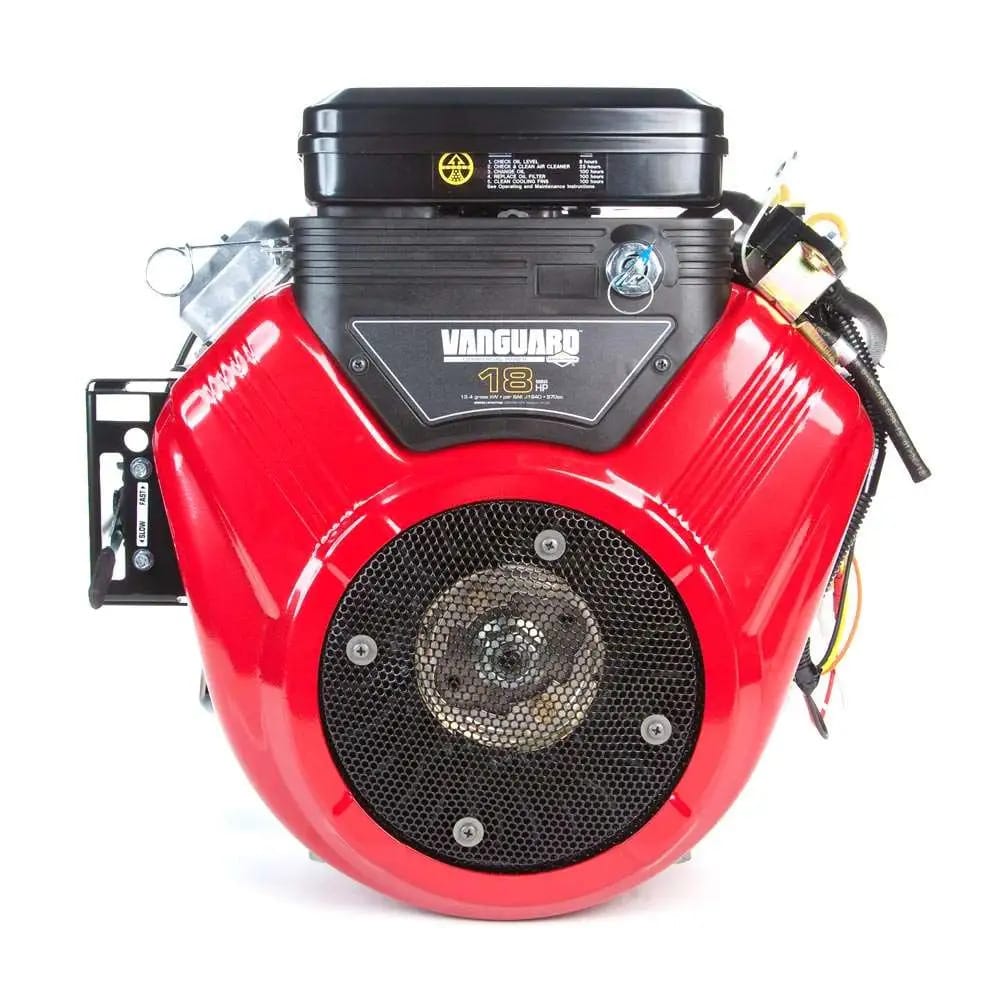

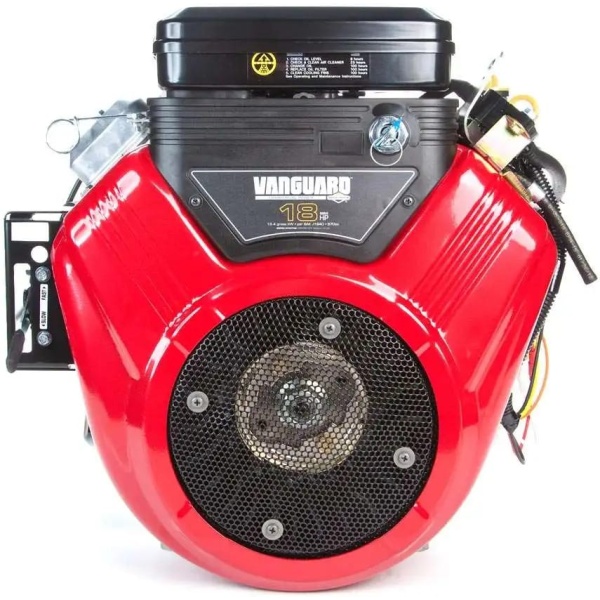

Briggs Stratton 356447-3079-G1 horizontal Vanguard engine is 570cc and puts out 18.0 gross HP. This OHV twin cylinder Vanguard has a 1″ x 2-29/32″ crankshaft. The engine has a 12V electric starter with a 16A alternator. A muffler is not included. Briggs Stratton Vanguard engines are designed to operate under challenging conditions making them a top choice among equipment manufacturers. Common applications include tillers, compactor plates, generators, aerators and more.
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 356447-3079-G1 |
| REPLACES MODELS | 356447-0135-E1, 356447-0135-G1, 350447-1240-E1, 350447-1225-E1, 350447-1225-A1, 350447-1224-E1, 350447-1224-A1, 350447-1217-E1, 350447-1217-A1, 350447-1206-E1, 350447-1199-E1, 350447-1199-A1, 350447-1198-E1, 350447-1198-A1, 350447-1195-E1, 350447-1195-A1, 350447-1191-E1, 350447-1191-A1, 350447-1189-A1, 350447-1184-A1, 350447-1176-E1, 350447-1176-A1, 350447-1173-E1, 350447-1173-A1, 350447-1171-E1, 350447-1171-A1, 350447-1170-A1, 350447-1169-E1, 350447-1169-A1, 350447-1166-A1, 350447-1158-E1, 350447-1158-A1, 350447-1154-A1, 350447-1153-A1, 350447-1148-A1, 350447-1145-E3, 350447-1145-E1, 350447-1145-A3, 350447-1145-A1, 350447-1144-A1, 350447-1139-E1, 350447-1139-A1, 350447-1136-A1, 350447-1134-A1, 350447-1133-E2, 350447-1133-A2, 350447-1133-A1, 350447-1128-E1, 350447-1128-A1, 350447-1119-A1, 350447-1118-E1, 350447-1118-A1, 350447-1115-A1, 350447-1111-E1, 350447-1109-E1, 350447-1108-E1, 350447-1084-E1, 350447-1084-A1, 350447-1079-E1, 350447-1079-A1, 350447-1064-E2, 350447-1064-E1, 350447-1064-A4, 350447-1064-A3, 350447-1064-A2, 350447-1064-A1, 350447-1013-E1, 350447-1013-A1, 350447-1010-E2, 350447-1010-A2, 350447-0166-01, 350447-0163-01, 350447-0158-01, 350447-0154-01, 350447-0153-01, 350447-0148-01, 350447-0145-01, 350447-0144-01, 350447-0139-01, 350447-0136-01, 350447-0134-01, 350447-0133-01, 350447-0128-01, 350447-0127-01, 350447-0126-01, 350447-0124-01, 350447-0119-01, 350447-0118-01, 350447-0117-01, 350447-0115-01, 350447-0114-01, 350447-0112-01, 350447-0110-01, 350447-0109-01, 350447-0084-01, 350447-0079-01, 350447-0064-04, 350447-0064-03, 350447-0064-02, 350447-0064-01, 350447-0010-02, 350445-1245-E1, 356447-0079 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 91 |
| DISPLACEMENT | 570cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 2-29/32″ |
| CRANKSHAFT LENGTH | 2-29/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | No |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 48 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual and Remote |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 16 |
| BOLT CIRCLE | 5, 6-1/2, 7-3/4 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
