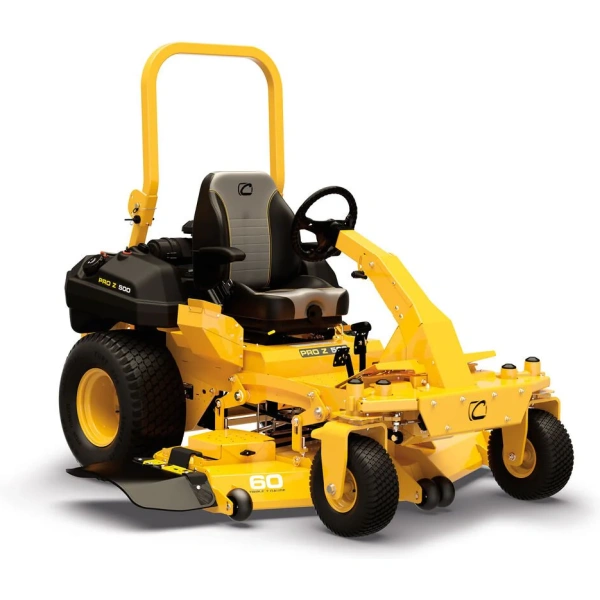

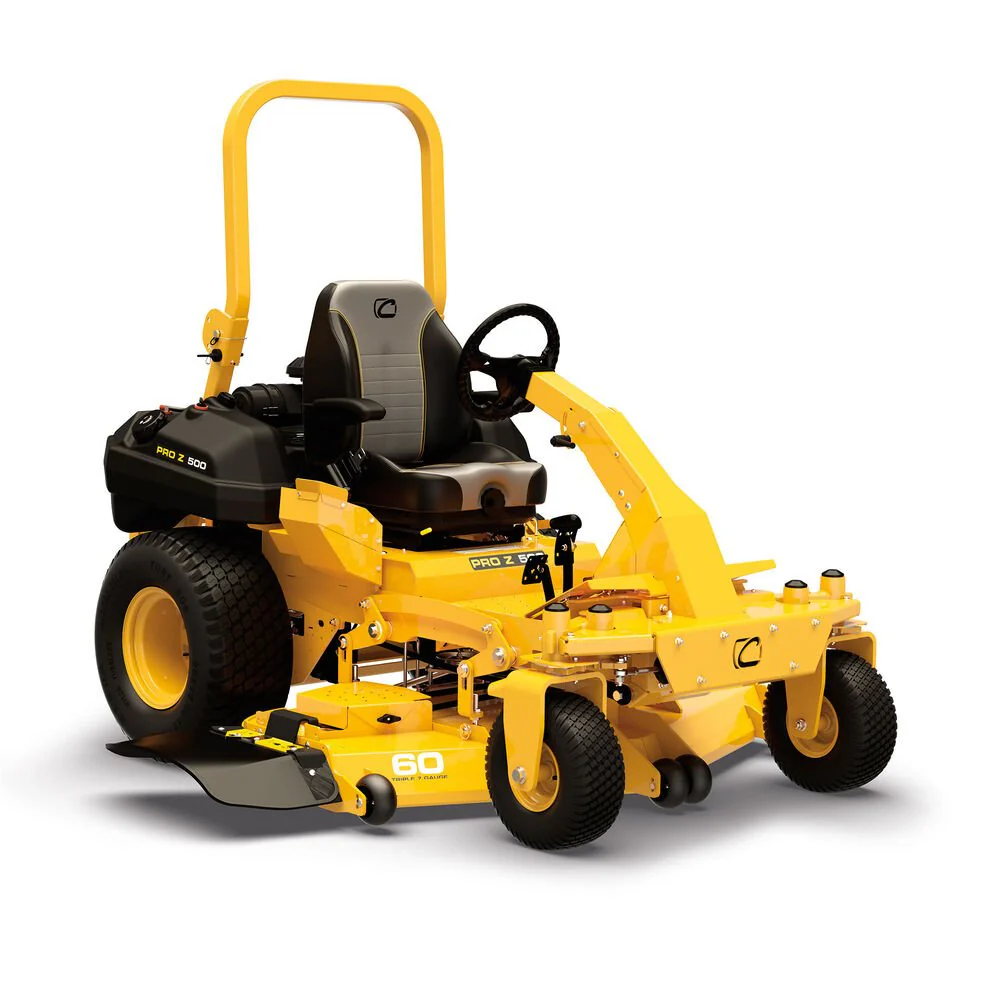

Cub Cadet PRO Z 560 S KW Steering Wheel Commercial Zero Turn

• Cub Cadet’s full commercial-grade powerful and productive steering wheel commercial zero turn mower.
• 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
• 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty

Engine
Engine Brand: Kawasaki
Engine Model: FX Series
Engine Model Number: 850V
Engine Displacement: 852cc
Engine Output: 27HP
Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 15 amp regulated
Fuel Gauge: Dial
Choke: Separate Choke
Air Filter: High Density
Oil Filter: Yes
Fuel Delivery: Carburetor

Drive System
Transmission: Parker HTJ Series, 12cc pump / 260cc wheel motor
Forward Speed: 10 mph / 16 km/h
Reverse Speed: 5 mph / 8km/h

Cutting Deck
Deck Cutting Width: 60 in
Deck Material: fabricated 7ga. (.187”) steel shell
Deck Engagement: (PTO) electronic fingertip engagement pto
Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
Blade(s): 3 high-lift Marbain blades / 18,500 fpm (approx.)
Cutting Height Range: 1” to 5” in 1/4” increments
Anti-Scalping: 2 front deck gauge wheels
Deck Positions: Foot pedal with spring assist 16 Positions

Warranty
Deck Shell Warranty: 5 year / 1,750 hour limited deck construction warranty
Commercial Warranty: 3 year / no hour limit commercial warranty

Chassis
Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
Front Axle: 2″ x 3″ solid axle tube
ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
Bumper: 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Yokes: 1/2″ thick steel front yokes

Controls
Cruise Control: NA
Brakes: Hand-operated lever with integrated hydro pump release lever
Steering Control: High Performance Steering Wheel with electronic power steering & Foot-pedal Control

Comfort
Seat Type: Cushion with seat belt
Armrests: Standard
Seat Suspension: High-back dial suspension with EVC
Seat Adjustment: Angle back adjust

Wheels
Rear Tires: 24″x12″-12″
Front Tires: 15″x6″-6″
Kenda K505 Tire Tread: Turf Tread

Dimensions
Dimensions L/W/H: 84″ L x 56″ W x 50″ H
Weight (approx.): 1424 lbs.

Additional Specifications
Hour Meter: Crew Boss all functions
Discharge Chute: High-density, impact-resistant rubber
Cup Holder: Intergrated into Side Pod
Model Number: 53TIHJUV050
