Domestic Pump 650PF-C17 Domestic Pump Centriflo 1HP 3PH 1750 RPM

Domestic Pump 650PF-C17 Domestic Pump Centriflo 1HP 3PH 1750 RPM

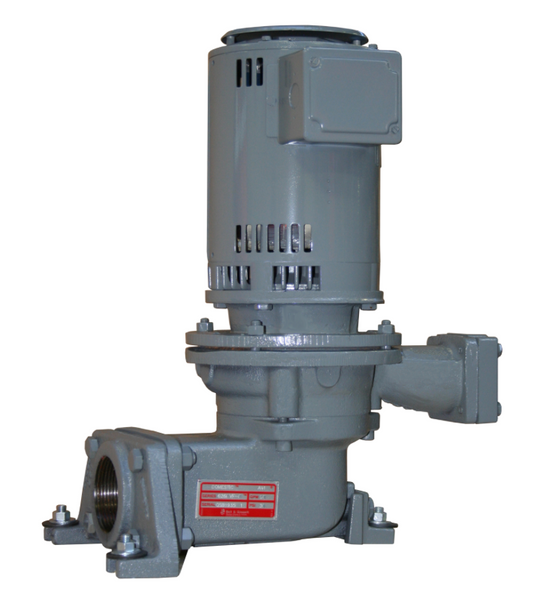

The Domestic Pump 650PF-C17 Centriflo Pump (1 HP, 3PH, 1750 RPM) is a robust, cast iron centrifugal pump designed for reliable fluid transfer in light commercial and industrial applications. The Domestic Series C17 Centriflo model is known for its robust construction and ability to handle consistent flow in closed-loop systems. The 1 HP, 3 Phase motor running at 1750 RPM provides quieter, more efficient, and dependable power for general circulation needs. Choose this versatile Domestic Centrifugal Pump for reliable three-phase, low-speed performance.

650PF-C17 Domestic Pump Centriflo 3/4HP 3PH 1750 RPM. These pumps are the heart of Domestic Pump condensate-handling equipment. Centriflo centrifugal pumps are basic components of much of our line of condensate-handling equipment. Designed for the rigorous demands of this service, Centriflo pumps require a lower NPSH than conventional pumps. Vertical mounting of the pump saves floor space and gets the motor up above dirt and water. The style PF flange-mounted pumps can be simply bolted to vertical flat surfaces, such as our condensate receivers, eliminating suction piping completely. PVF vertical foot mounted are provided with footed NPT connect suction flanges and NPT discharge connections for ease of use in other applications.

Features and Benefits

• Cast iron, bronze fitted with stainless steel shaft
• Easily renewable bronze case wearing ring
• Carbon/ceramic mechanical seals designed for 250°F (121°C)
• Available in 3500 RPM (Series C35) and 1750 RPM (Series C17)
• Capacities to 600 GPM (37.8 l/s)
• Pressures to 100 psi (690 kPa)
