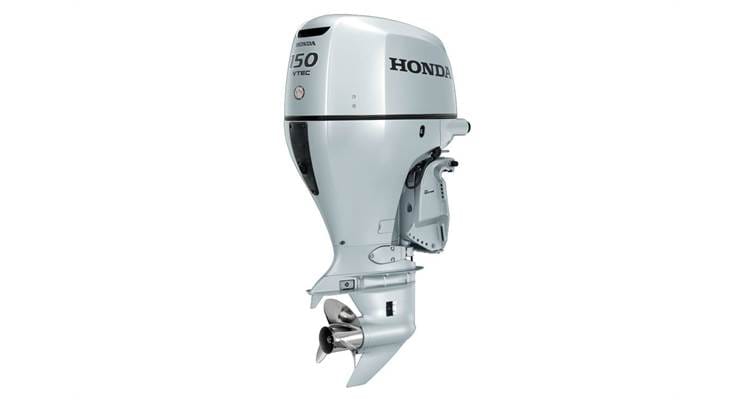

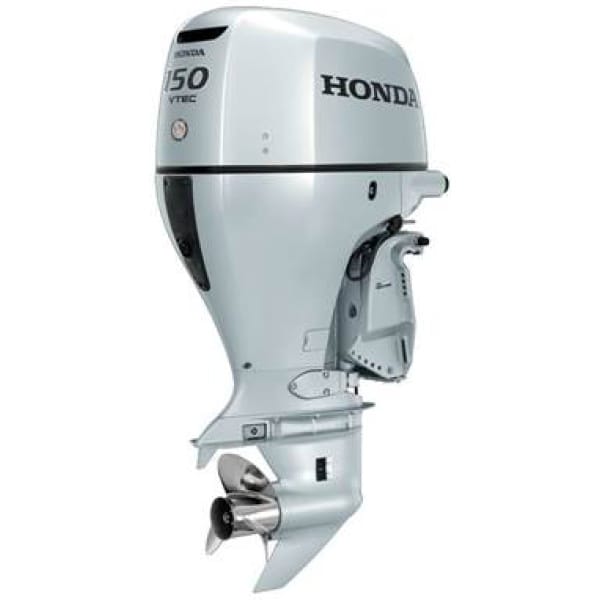

Honda 150AK2XCC Outboard Motor

The Honda 150AK2XCC is a powerful 150-horsepower outboard motor designed for a variety of recreational and commercial boating activities. As part of Honda’s renowned BF series, the 150AK2XCC is engineered for performance, fuel efficiency, and reliability. With advanced technologies and a robust design, this motor is an excellent choice for medium to large-sized boats such as fishing boats, pontoons, and cruisers, offering a smooth and enjoyable boating experience.

Key Specifications:

• Engine Type: 4-Stroke, DOHC, 4-cylinder
• Displacement: 2,354 cc (143.0 cu in)
• Maximum Output: 150 horsepower (111.9 kW)
• Fuel System: Programmed Fuel Injection (PGM-FI)
• Cooling System: Water-cooled
• Fuel Tank Capacity: External fuel tank (size varies based on configuration)
• Starting System: Electric start (with recoil back-up)
• Gear Ratio: 1.86:1
• Shaft Length: 25 inches (X-Long Shaft) or 30 inches (XX-Long Shaft)
• Weight: Approximately 226 kg (498 lbs) for the 25-inch shaft version
• Trim & Tilt: Power trim and tilt for easy angle adjustments
• Steering: Remote control steering
• Propeller: Propeller size varies depending on the boat’s needs and configuration
• Ignition System: Digital CDI (Capacitor Discharge Ignition)
• Oil Capacity: 5.3 liters (5.6 US quarts)

Features:

1. Programmed Fuel Injection (PGM-FI): The PGM-FI system ensures optimal fuel efficiency and smooth operation by precisely controlling the fuel-air mixture for smoother acceleration and better overall engine performance. It also improves starting reliability in various conditions.
2. Lean Burn Control Technology: Honda’s Lean Burn technology adjusts the air-to-fuel ratio based on throttle position and load, providing improved fuel economy, especially at cruising speeds, extending the range per tank of fuel.
3. VTEC (Variable Valve Timing and Lift Electronic Control): VTEC technology adjusts the intake valve timing and lift, enhancing fuel efficiency and increasing torque when needed. It ensures optimal power output across a wide range of operating speeds, giving you better acceleration and performance.
4. Quiet Operation: The Honda 150AK2XCC is designed for quiet operation, utilizing advanced noise-reducing technologies that minimize vibration and engine noise. This makes for a more enjoyable boating experience.
5. Corrosion Resistance: Built with corrosion-resistant components, including a stainless-steel shaft and premium coatings, the 150AK2XCC is ideal for use in both freshwater and saltwater environments, ensuring durability over time.
6. Power Trim & Tilt: The power trim and tilt system allows for easy adjustment of the motor’s angle, optimizing performance and reducing drag. It also provides better handling and fuel efficiency.
7. Electric Start & Recoil Back-Up: The motor comes with an electric start for convenient operation, as well as a manual recoil backup to ensure that you can start the motor in case of an emergency.
8. Digital CDI Ignition: The digital CDI ignition system ensures quick starts, consistent performance, and reliable operation, even in varying conditions.
9. Environmental Compliance: The Honda 150AK2XCC meets or exceeds EPA and CARB emissions standards, making it an environmentally-friendly choice with reduced emissions, helping to preserve the environment.
10. Multi-Function Digital Display: For added convenience, the motor provides essential information, such as fuel consumption, engine hours, and performance data, helping you monitor the motor’s status while on the water.

Best Applications:

• Ideal for medium to large boats: The Honda 150AK2XCC is perfect for a variety of recreational and commercial boating applications, including fishing boats, pontoons, and cruisers that require a reliable and powerful motor.
• Perfect for cruising, watersports, and offshore fishing, where consistent performance and smooth operation are crucial.
• Long-range boating: Thanks to its fuel efficiency, the 150AK2XCC is ideal for long-distance cruising and adventures on the water.

The Honda 150AK2XCC outboard motor combines Honda’s engineering excellence with advanced features to deliver powerful, efficient, and quiet performance. Whether you’re cruising, fishing, or engaging in watersports, this motor offers reliable performance with excellent fuel efficiency and minimal environmental impact. It’s a top choice for boaters looking for a robust and versatile engine to power their boating adventures.
