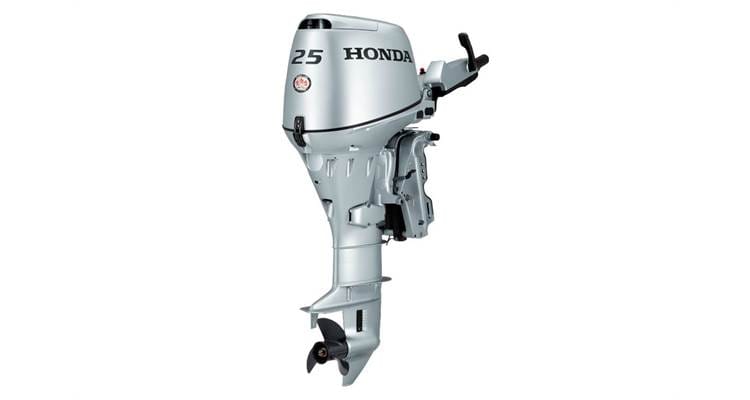

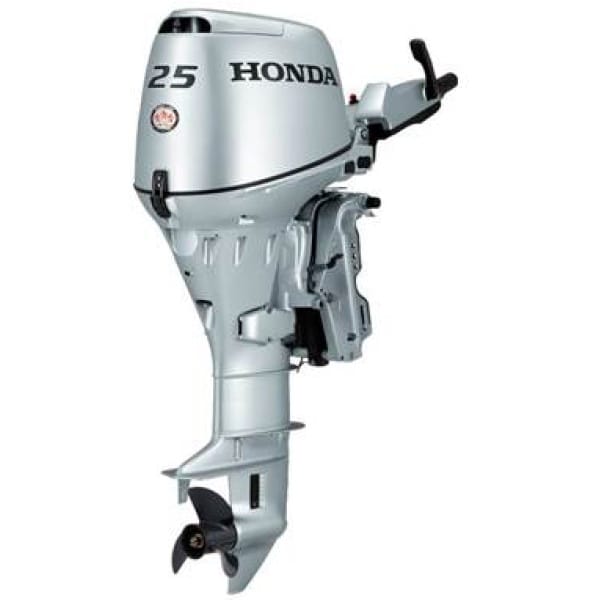

Honda 25DK3SHGC Outboard Motor

The Honda 25DK3SHGC is a 25 horsepower, four-stroke outboard motor designed for efficient performance and reliability. It features a 15-inch shaft and electric start, offering smooth, quiet operation with low emissions, making it ideal for small boats and recreational use. The motor’s lightweight design ensures easy handling, while its advanced technology provides fuel efficiency and durability in various water conditions.

Dimensions:

• Length: 37.6 inches (955 mm)
• Width: 18.9 inches (480 mm)
• Height: 46.3 inches (1,177 mm)
• Dry Weight: 126 lbs (57 kg)

Key Features

• Four-Stroke Engine Design: World-renowned Honda quality, proven reliability with no oil mixing.
• Over-Rev Protection: Standard rev-limiter protects the engine from severe damage caused by over-revving.
• Over-Rev and Overheat Warning Systems: Standard over-rev and overheat warning systems offer peace of mind and protect your investment.
• Fresh Water FlusHPort: Allows easy hook-up to fresh water supply to flush debris and salt water out of the engine, extending the life of the outboard (optional Flush Kit required).
• Shallow-Water Drive: Allows the engine to run in a tilted position at low-throttle settings – greatly reducing the risk of engine damage while navigating in shallow water.
• Sacrificial Anodes: The BF25 has 1 internal and 2 external sacrificial anodes to protect metal components from corrosion.
• Three-Year Warranty: The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.
• Forward-Mounted Shift Lever: Allows for easier shifting, especially when docking or in tight access areas.
• Regulated, High-Output Charging System: A 4-amp charging system is standard on manual-start models, and a 10-amp on the electric-start models. Each system is equipped with a solid-state regulator/rectifier for easy hook-up.
• Emergency Stop Switch/Safety Lanyard: The boat operator clips the lanyard to his or her wrist, which will activate the safety stop switch if the operator leaves the helm.
• Standard Fuel Tank, Hose and Propeller: A 25-litre fuel tank, fuel hose and aluminum propeller are included as standard equipment.

Engine

• Type: 4-Stroke SOHC; 3 Cylinders, 6 Valves
• Displacement: 33.7 cubic in. / 552 cc
• Bore & Stroke: 24.0 x 2.48 in. (61 mm x 63 mm)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower: 25 HP @ 5,500 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 3 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: Capacitor Discharge; Digital CDI
• Starting System: Electric
• Exhaust: Through Prop Hub
• Lubrication: Forced Lubrication
• Recommended Oil: SAE 5W30 API service classification SJ or later
• Oil Capacity: 1.80 Imp. qt (1.70 L) with oil filter repl.
• Trim Range: -4° to +12°
• Tilt Range: -4° to 64°
