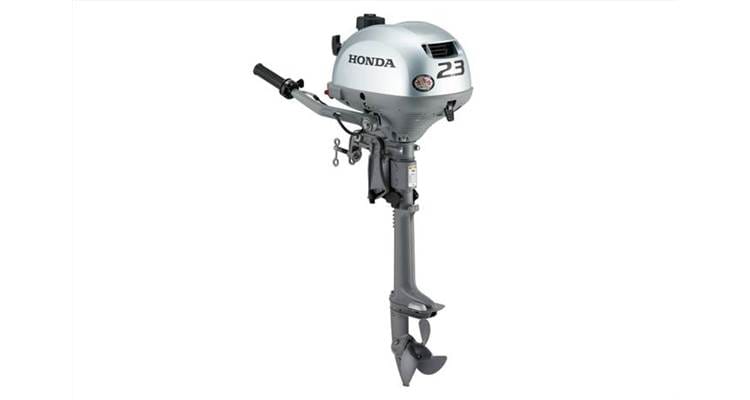

Honda BF2.3DHLCHC Outboard Motor

The Honda BF2.3DHLCHC Outboard Motor is a lightweight, 2.3-horsepower, 4-stroke engine designed for small boats, dinghies, and auxiliary use. It offers easy handling, fuel efficiency, and quiet performance, making it perfect for leisure boating or as a backup motor. The engine features a manual pull-start system and a compact design, making it easy to transport and store. Known for its durability and low maintenance, the BF2.3DHLCHC is an excellent choice for boaters looking for a portable, reliable, and eco-friendly outboard.

Key Specifications:

• Horsepower: 2.3 HP
• Engine Type: 4-Stroke, Single Cylinder
• Displacement: 57.2 cc
• Starting System: Manual Start (Pull Start)
• Weight: Approximately 29.8 lbs (13.5 kg)
• Dimensions (L x W x H): Around 15.4 x 12.6 x 38.6 inches (390 x 320 x 980 mm)

Performance and Efficiency

• Four-Stroke Engine Design: World-renowned Honda quality combines proven reliability with no oil-gasoline mixing.
• Centrifugal Clutch: Honda’s centrifugal clutch facilitates the ruing of the engine at idle, with no propeller rotation, for tight navigation or just idling at the dock.
• Lightweight, Compact Design: Easily transportable, this little outboard is ideal for small boats, dinghies and canoes. Lightweight 4-stroke design and is the only 4-stroke in the 2.3-hp class.
• Transistorized Ignition: Maintenance-free, high-energy output for quick and easy starting.

Reliability and Durability

• Forced-Air Cooled Engine: No water pump to worry about being plugged with weeds or damaged by sand, and less weight to carry.
• Emergency Stop Switch and Lanyard: Standard safety feature allows the operator to clip the safety switch lanyard or tether to his or her wrist, which will automatically activate the engine stop switch if the operator leaves the helm.
• Shallow-Water Drive: Reduces the risk of engine damage while navigating in shallow water.
• Sacrificial Anode: A sacrificial anode mounted on the lower unit protects other metal components from corrosion.
• Three-Year Warranty: The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.

Convenience and Ease of Use

• Featuring: Centrifugal drive clutch, which offers a neutral-gear position at idle. Both models have a tiller-mounted twist grip throttle/360 deg. swivel steering.
• 360 Degree Swivel Steering: Provides excellent manoeuvrability in tight areas.
• Integral Fuel Tank: Facilitates easy removal and portability as one unit. Vent may be closed for transport or extended storage periods.
• Carburetor Drain Screw: Allows quick and easy draining of the carburetor’s float bowl for transport or extended storage periods.
• Twist Grip Throttle with Friction Adjuster: Allows for superior throttle control, and the throttle tensioner minimizes driver fatigue.
• Large Front-Mounted Carrying Handle: Provides superior portability and ease of installation.
• Fold-Down Tiller Handle: A more compact design allows for easy transportation and storage.

Engine

• Type: 4-Stroke, OHV; 1 Cylinder / 2 Valves
• Displacement: 3.5 cubic in. (57 cc)
• Bore & Stroke: 1.77 x 1.42 in. (45 mm x 36 mm)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower: 2.3 HP @ 5,500 RPM
• Cooling System: Air Cooled
• Fuel Delivery: 1 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: Transistorized Magneto Ignition
• Starting System: Recoil
• Exhaust: Under Water, above propeller
• Lubrication: Forced splash
• Recommended Oil: SAE 10W30 API service classification SJ or later
• Oil Capacity: 0.22 Imp. qt (0.25 L)
• Trim Range: 4-Stage 5 deg.-10 deg.-15 deg.-20 deg.
• Tilt Range: 75 deg.
