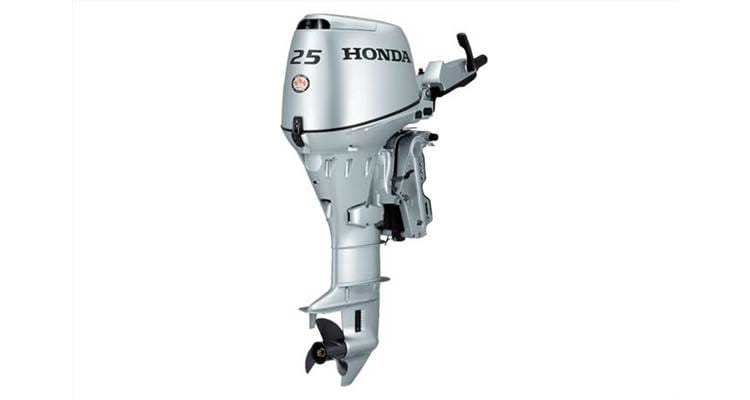

Honda BF25DK3SHGC Outboard Motor

The Honda BF25DK3SHGC is a 25 horsepower, four-stroke outboard motor designed for fuel efficiency, quiet operation, and low emissions. Featuring a 15-inch shaft and electric start, it provides smooth and reliable power for small to medium-sized boats. This motor is recreational use, offering advanced technology for durability, easy handling, and outstanding performance in a variety of water conditions.

Dimensions:

• Length: 36.6 inches (930 mm)
• Width: 17.3 inches (439 mm)
• Height: 47.4 inches (1,204 mm)
• Dry Weight: 120 lbs (54 kg)

Performance and Efficiency

• Four-Stroke Engine Design: World-renowned Honda quality, proven reliability with no oil mixing.

Reliability and Durability

• Over-Rev Protection: Standard rev-limiter protects the engine from severe damage caused by over-revving.
• Over-Rev and Overheat Warning Systems: Standard over-rev and overheat warning systems offer peace of mind and protect your investment.
• Fresh Water Flushport: Allows easy hook-up to fresh water supply to flush debris and salt water out of the engine, extending the life of the outboard (optional Flush Kit required).
• Shallow-Water Drive: Allows the engine to run in a tilted position at low-throttle settings – greatly reducing the risk of engine damage while navigating in shallow water.
• Sacrificial Anodes: The BF25DK3SHGC S-Type has 1 internal and 2 external sacrificial anodes to protect metal components from corrosion.
• Three-Year Warranty: The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.

Convenience and Ease of Use

• Forward-Mounted Shift Lever: Allows for easier shifting, especially when docking or in tight access areas.
• Regulated, High-Output Charging System: A 10-amp charging system comes standard. Each system is equipped with a solid-state regulator/rectifier for easy hook-up.
• Emergency Stop Switch/Safety Lanyard: The boat operator clips the lanyard to his or her wrist, which will activate the safety stop switch if the operator leaves the helm.
• Standard Fuel Tank, Hose and Propeller: A 25-litre fuel tank, fuel hose and aluminum propeller are included as standard equipment.

Engine

• Type: 4-Stroke SOHC; 3 Cylinders / 6 Valves
• Displacement: 33.7 cubic in. (552 cc)
• Bore & Stroke: 2.40 x 2.48 in. (61 mm x 63 mm)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower: 25 HP @ 5,500 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 3 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: Capacitor Discharge; Digital CDI
• Starting System: Electric
• Exhaust: Through Prop Hub
• Lubrication: Forced Lubrication
• Recommended Oil: SAE 5W30 API service classification SJ or later
• Oil Capacity: 1.80 Imp. qt (1.70 L) with oil filter repl.
• Trim Range: -4 deg. to +12 deg.
• Tilt Range: -4 deg. to 64 deg.
