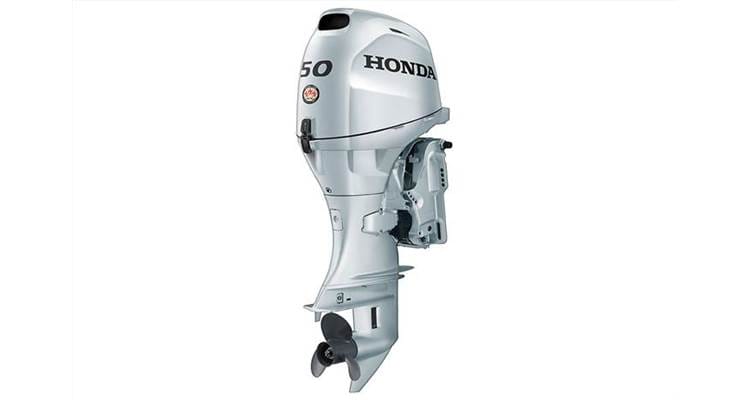

Honda BF50DK4LHTC Outboard Motor

The Honda BF50DK4LHTC is a 50 horsepower, four-stroke outboard motor designed for high-thrust performance, fuel efficiency, and smooth operation. Featuring a 25-inch shaft and electric start, it provides quiet, reliable power with low emissions. Equipped with a high-thrust propeller, it ensures excellent control and performance in demanding water conditions, making it ideal for medium to large boats used in both recreational and light-duty commercial applications.

Dimensions:

• Length: 48.0 inches (1,219 mm)
• Width: 25.4 inches (645 mm)
• Height: 65.4 inches (1,662 mm)
• Dry Weight: 237 lbs (108 kg)

Performance and Efficiency

• Honda’s Four-Stroke Engine Design: World-renowned Honda quality, proven reliability with no oil mixing.
• Offset Crankshaft Design: Locates the powerhead directly over transom bracket pivot point for smoother operation of trim and tilt, as well as reducing stress on the transom and steering effort. Also, it reduces vibration and improves performance and handling. It also provides for a very compact design.
• Non-Linear Mounting System: Patented non-linear mounting provides smoother operation at all engine speeds.

Reliability and Durability

• Over-Rev Protection: Standard rev-limiter protects the engine from severe damage caused by over-revving.
• Overheat and Low-Oil-Level Warning Systems: Standard overheat and low-oil warning systems offer peace of mind and protect your investment.
• Fresh Water Flushport: Allows easy hook-up of a garden hose to flush debris and salt water out of the engine, extending the life of the outboard (optional Flush Kit required).
• Sacrificial Anodes: The BF50 has 1 internal and 2 external sacrificial anodes to protect all metal components from corrosion.
• Three-Year Warranty: The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.

Convenience and Ease of Use

• Light, Compact Design: Three-cylinder design allows for smooth operation while remaining compact.
• Regulated, High-Output Charging System: A regulated, 22-amp charging system is standard on both electric-start models to ensure that batteries remain charged while operating electronics.
• Forward-Mounted Shift Lever (Tiller Models): Allows easier shifting, especially when docking or in tight access areas.
• Built-in Pitot Tube: A Pitot tube is designed into the lower gearcase and allows a direct hook-up for your speedometer.
• Standard Gauges, Propeller and Control Box: Tachometer, trim gauges, aluminum propeller and a high-quality, side-mount control box are included with Power Tilt and Trim models.
• Standard Fuel Tank, Hose and Propeller: A 25-litre fuel tank, fuel hose and aluminum propeller are included as standard equipment.

Engine

• Type: 4-Stroke SOHC; 3 Cylinders / 6 Valves
• Displacement: 49.4 cubic in. (808 cc)
• Bore & Stroke: 2.76 x 2.76 in. (70 mm x 70 mm)
• Full Throttle RPM Range: 5,500-6,000 RPM
• Propshaft Rated Horsepower: 50 HP @ 5,750 RPM
• Cooling System: Water Cooled
• Fuel Delivery: Programmed Electronic Fuel Injection (PGM-FI)
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: MicroComputer Programmed
• Starting System: Electric
• Exhaust: Through Prop Hub
• Lubrication: Pressure Lubrication (Trochoid pump)
• Recommended Oil: SAE 5W30 API service classification SJ or later
• Oil Capacity: 1.85 Imp. qt (2.10 L) with oil filter repl.
• Trim Range: -4 deg. to +12 deg.
• Tilt Range: 63 deg.
• Steering Angle: 35 deg.
