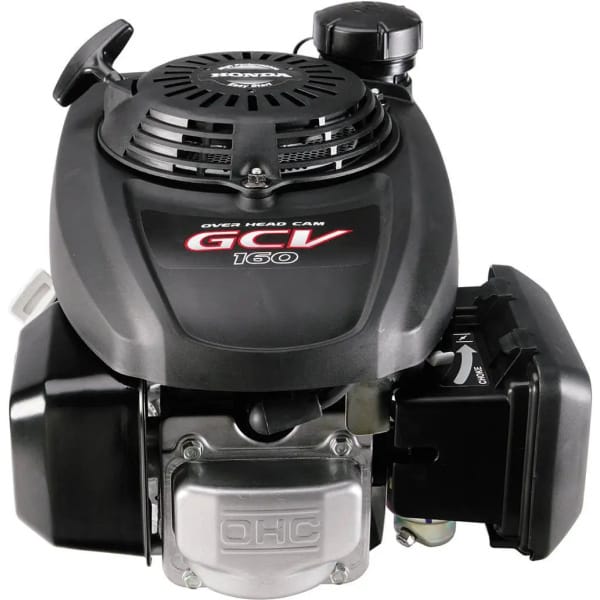

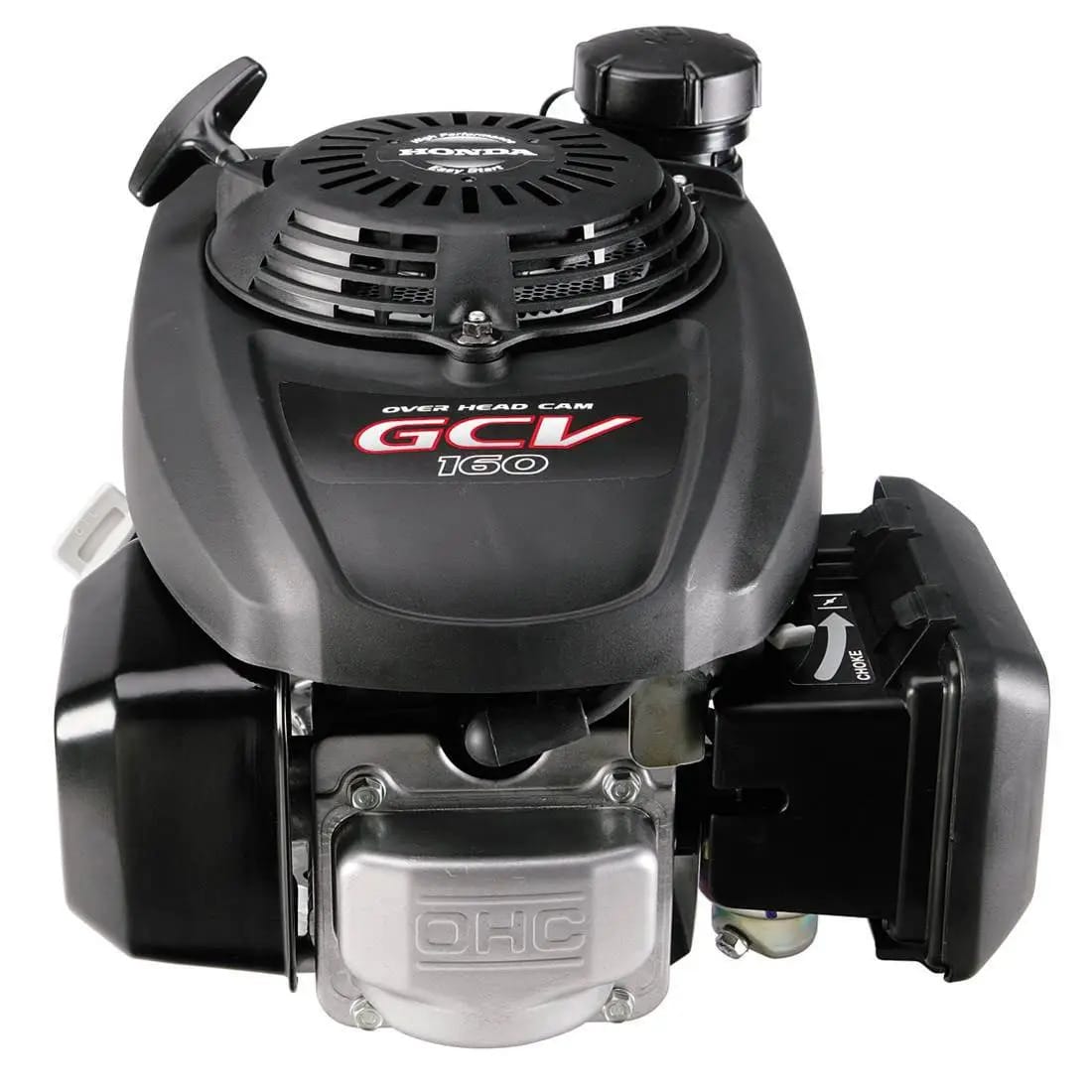

Honda GCV160 A2R Vertical Engine

Honda GCV160 A2R OHC 4-Stroke Engine, 7/8″ x 2.43″ Crankshaft, 4.4 Net HP, N2-Type Crankshaft Call to order. Image may not represent exact specifications of engine model. Engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications. As the world’s largest engine manufacturer, Honda has decided to apply a consistent method of rating engine power across all product lines; Auto, Motorcycle and Power Equipment; following the notion of ‘Net’ power, rather than ‘Gross’. We would like to aounce to you that Honda will be the first engine manufacturer to rate all general purpose engines at Net kW (Horsepower) in accordance with the Society of Automotive Engineers (SAE) test procedure. At the same timing we will also change the way of indicating the torque values (also measured with the ‘Net’ setup), fuel consumption (change from g/kW.hr to L/hr) and fuel tank capacity.

The Honda GCV160 A2R is a compact, reliable, and fuel-efficient 4-stroke engine designed for use in a variety of outdoor power equipment such as lawn mowers, pressure washers, and garden equipment.

Honda GCV160 A2R Vertical Engine – Specifications:

• Engine Type: Single-cylinder, air-cooled, 4-stroke, vertical-shaft

• Displacement: 160cc

• Horsepower: 4.4 HP (approximately)

• Bore x Stroke: 2.56 x 1.97 inches (65 x 50 mm)

• Compression Ratio: 8.5:1

• Fuel System: Carburetor (fixed jet)

• Fuel Type: Unleaded gasoline

• Fuel Tank Capacity: 0.91 liters (30.8 oz)

• Oil Capacity: 0.37 liters (12.5 oz)

• Lubrication: Splash lubrication

• Ignition System: Transistorized magneto ignition

• Starting System: Recoil start

• Cooling System: Air-cooled

• Max. Engine Speed: 3,600 RPM

• Governor Type: Mechanical

• Dimensions (L x W x H): Compact design for easy integration into equipment

• Dry Weight: 9.5 kg (20.9 lbs)
