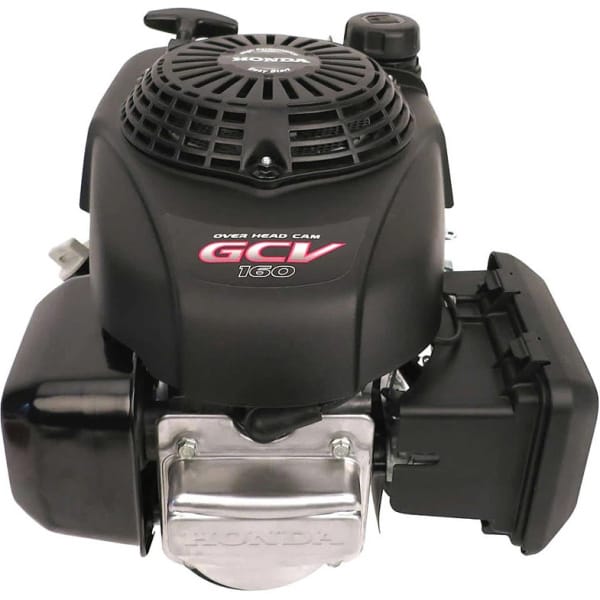

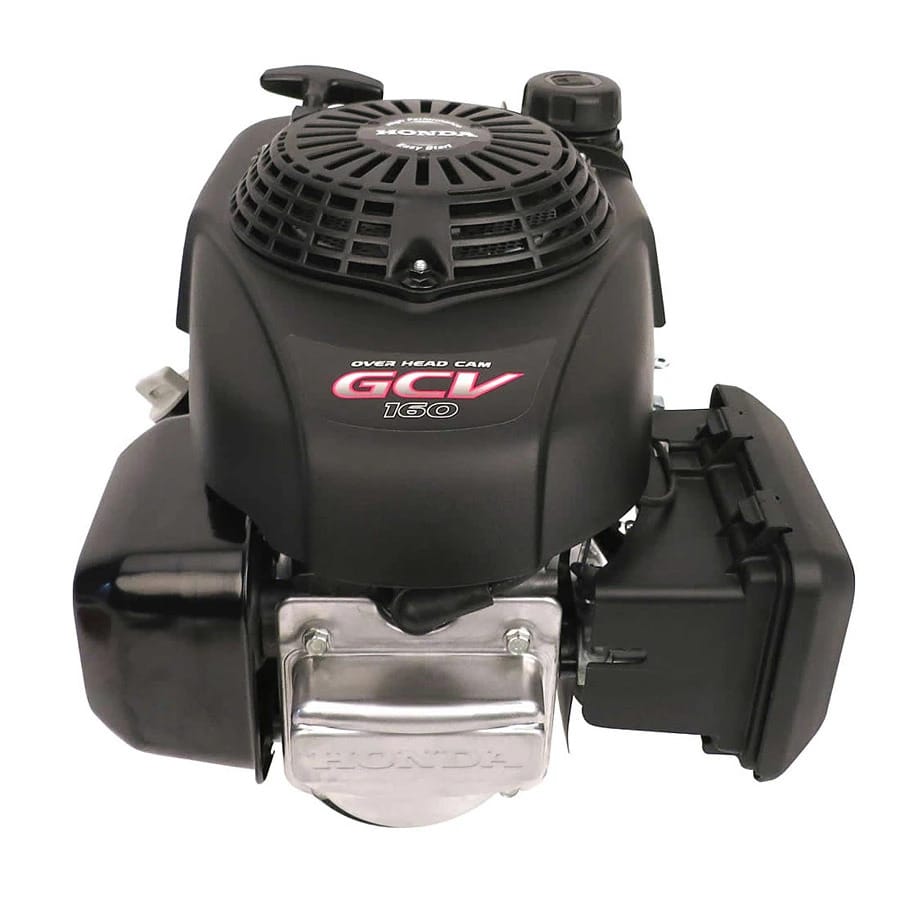

Honda GCV160 S3B Vertical Engine, 4.4 Net HP, 160cc, 25mm x 3-5/32″ Keyed Crankshaft, 3/16″ Keyway, With Flywheel Brake for Push Mowers engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.
As the world’s largest engine manufacturer, Honda has decided to apply a consistent method of rating engine power across all product lines; Auto, Motorcycle and Power Equipment; following the notion of ‘Net’ power, rather than ‘Gross’. We would like to aounce to you that Honda will be the first engine manufacturer to rate all general purpose engines at Net kW (Horsepower) in accordance with the Society of Automotive Engineers (SAE) test procedure. At the same timing we will also change the way of indicating the torque values (also measured with the ‘Net’ setup), fuel consumption (change from g/kW.hr to L/hr) and fuel tank capacity.
Honda GCV160 S3B Vertical Engine – Specifications:
Engine Type: Single-cylinder, air-cooled, 4-stroke, vertical-shaft
Displacement: 160cc
Horsepower: 4.4 HP (approximately)
Bore x Stroke: 2.56 x 1.97 inches (65 x 50 mm)
Compression Ratio: 8.5:1
Fuel System: Carburetor (fixed jet)
Fuel Type: Unleaded gasoline
Fuel Tank Capacity: 0.91 liters (30.8 oz)
Oil Capacity: 0.37 liters (12.5 oz)
Lubrication: Splash lubrication
Ignition System: Transistorized magneto ignition
Starting System: Recoil start
Cooling System: Air-cooled
Max. Engine Speed: 3,600 RPM
Governor Type: Mechanical
Dimensions (L x W x H): Compact design for easy integration into equipment
Dry Weight: 9.5 kg (20.9 lbs)
