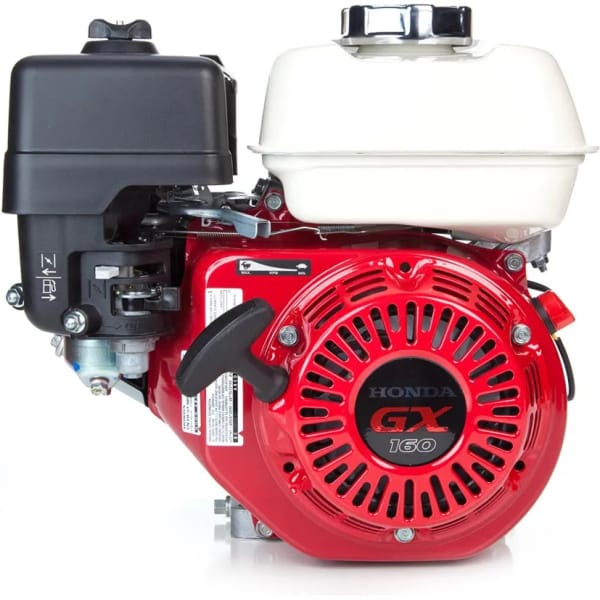

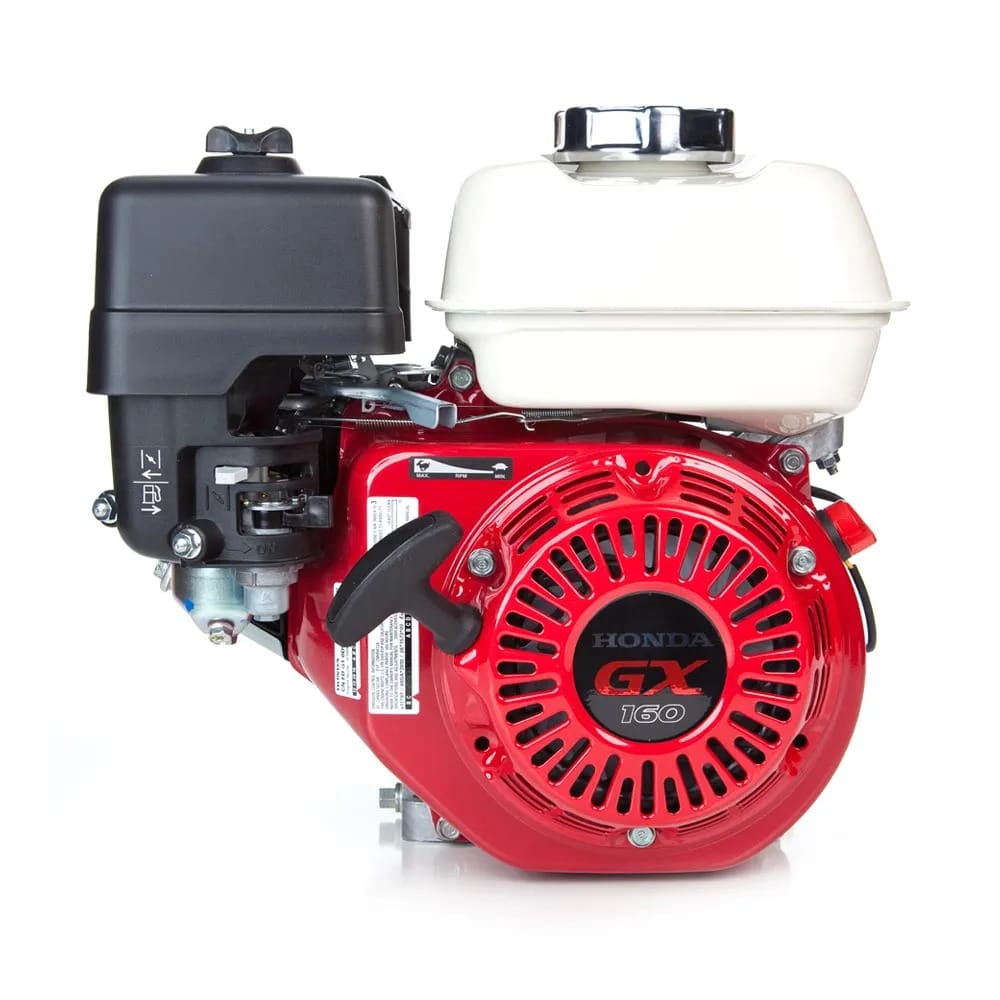

Honda GX160 QX2 (GX160UT2QX2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 2-7/16″ crankshaft with a 3/16″ Keyway (Tapped 5/16-24). The engine has a recoil starter and includes a fuel tank and oil alert system. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, agricultural equipment, tillers, generators, industrial equipment, pressure washers and more.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX160-QX2 |
| REPLACES MODELS | GX160 QX2, GX160QX2, GX160UT2QX2, GX160T1QX2, GX160UT1QX2, GX160-UT1QX2, GX160-UT1-QX2, GX160K1-QX2, GX160-K1QX2, GX160-K1-QX2, GX160K1-QWX2, GX160-QMX2. |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 41 |
| DISPLACEMENT | 163cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PRODUCT TYPE | eng |
| PTO HEIGHT | 4 – 11/64 |
