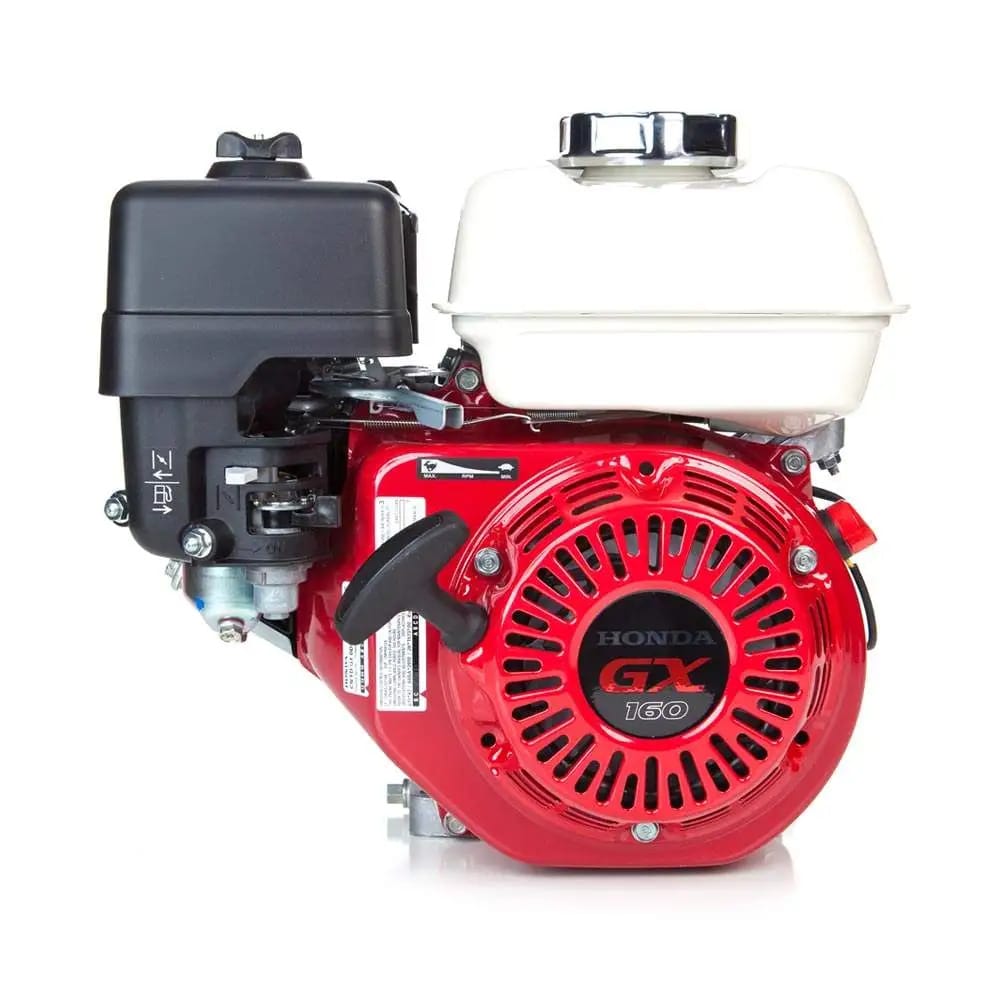

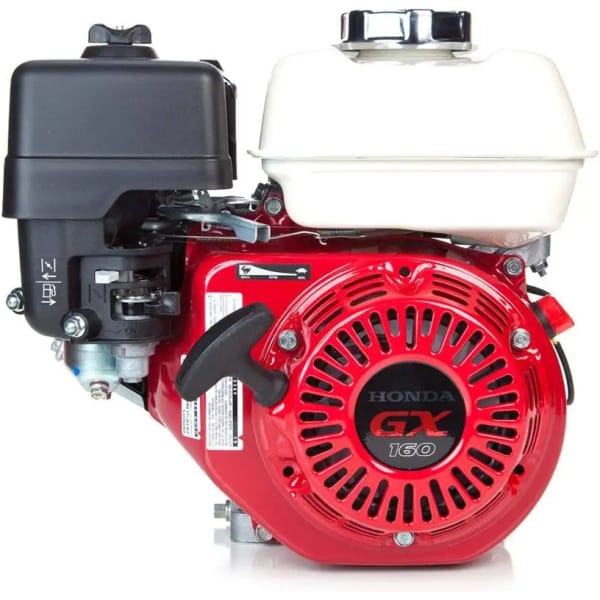

The Honda GX160 RH2 is a 163cc, air-cooled, 4-stroke, horizontal-shaft engine designed for light to medium-duty applications. With 5.5 horsepower, it is commonly used in equipment like pressure washers, generators, and small agricultural machinery. The GX160 RH2 features a recoil starter for reliable and easy starting, along with Honda’s reputation for durability and fuel efficiency, making it an ideal choice for residential and commercial use.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX160-RH2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 51 |
| DISPLACEMENT | 163cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | 2:1 with wet clutch |
| CRANKSHAFT DIMENSIONS | .86″ x 2-3/32″ |
| CRANKSHAFT LENGTH | 2-3/32″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | 7 mm |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 4 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
