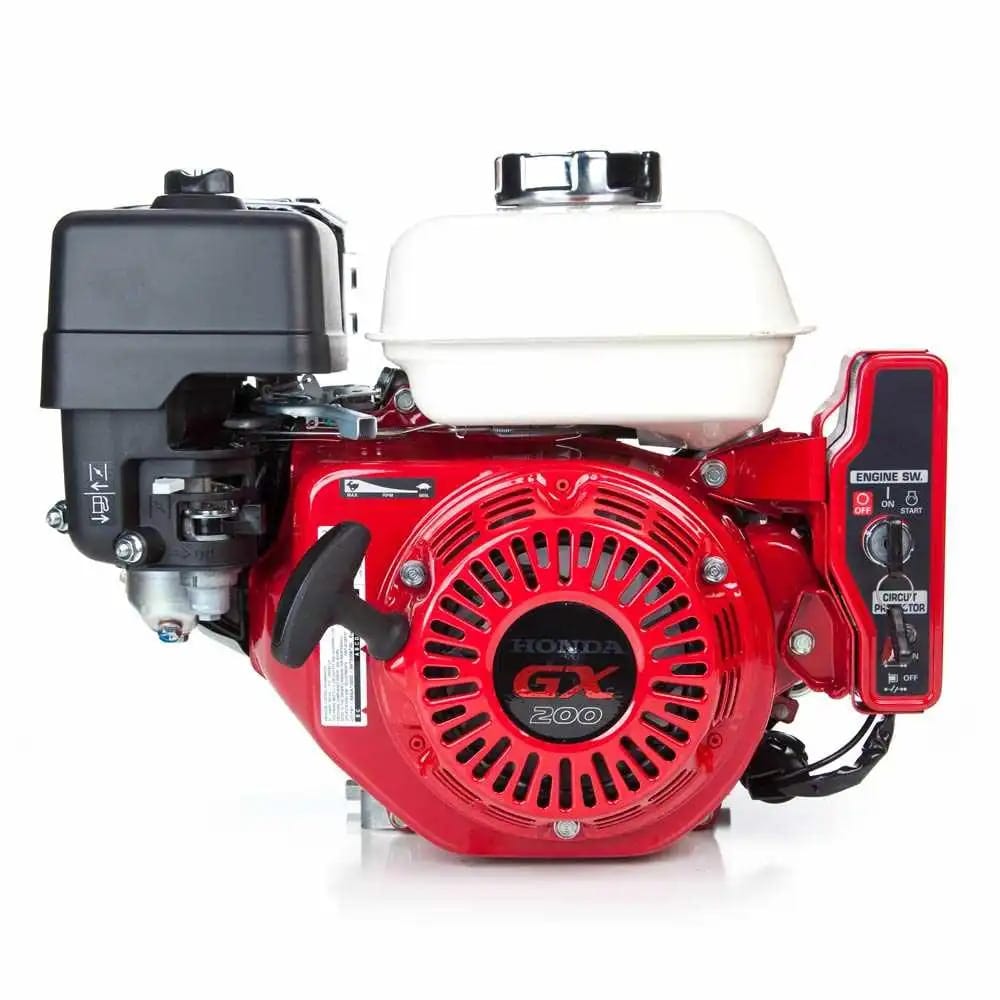

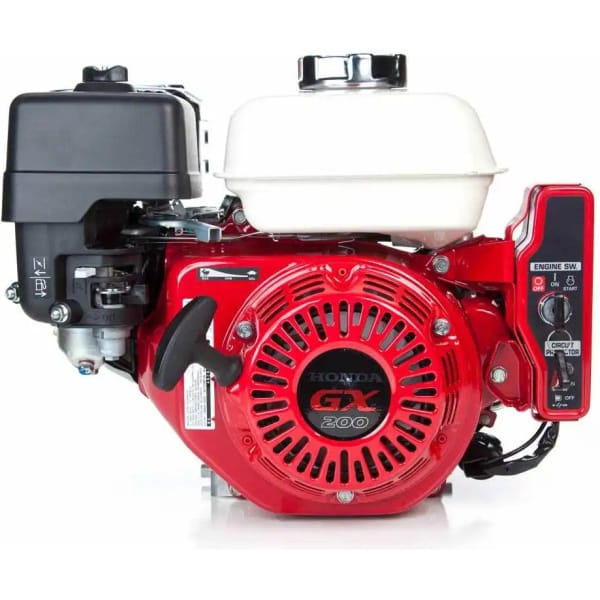

The Honda GX200 QXE2 is a 196cc, air-cooled, 4-stroke, horizontal-shaft engine designed for light to medium-duty applications. Producing 6.5 horsepower, it is commonly used in equipment such as pressure washers, small generators, and lawn mowers. Known for its reliability, fuel efficiency, and easy maintenance, the GX200 QXE2 offers smooth performance and consistent power for various commercial and residential tasks.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX200-QXE2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 47 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element Silent |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
