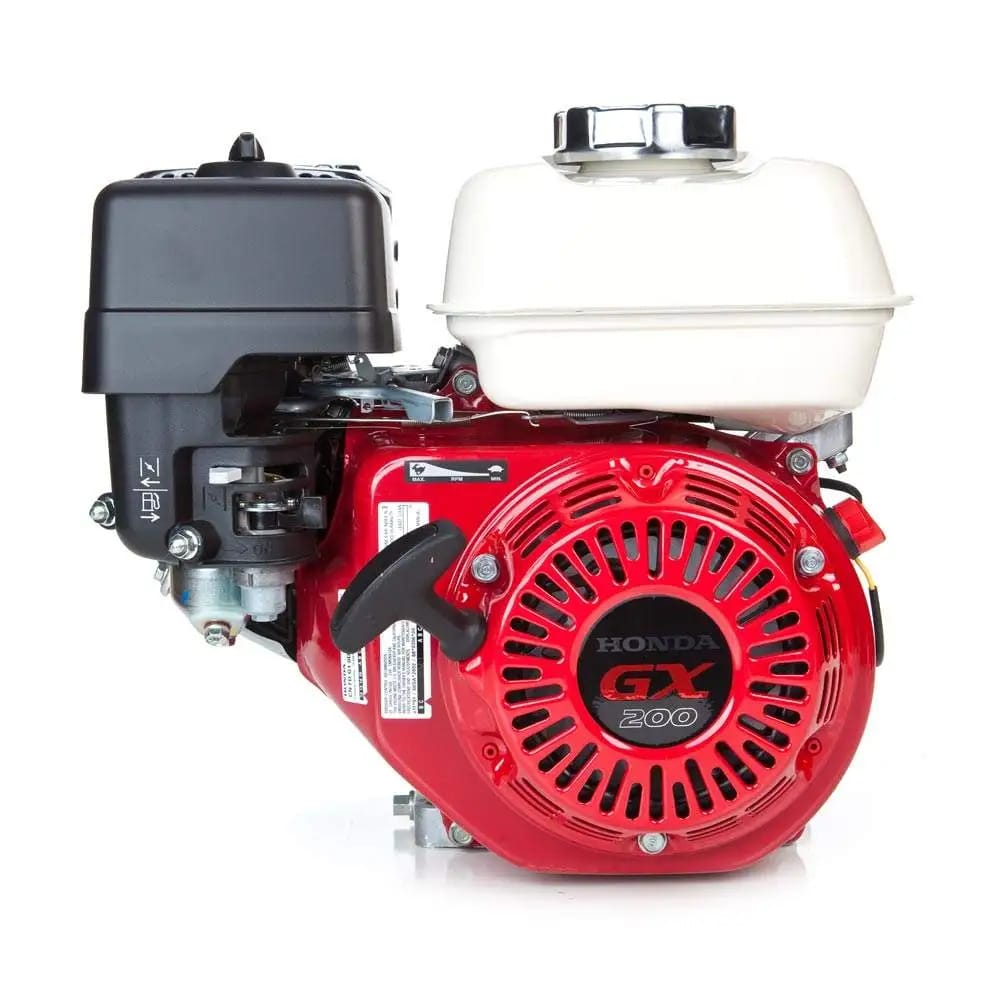

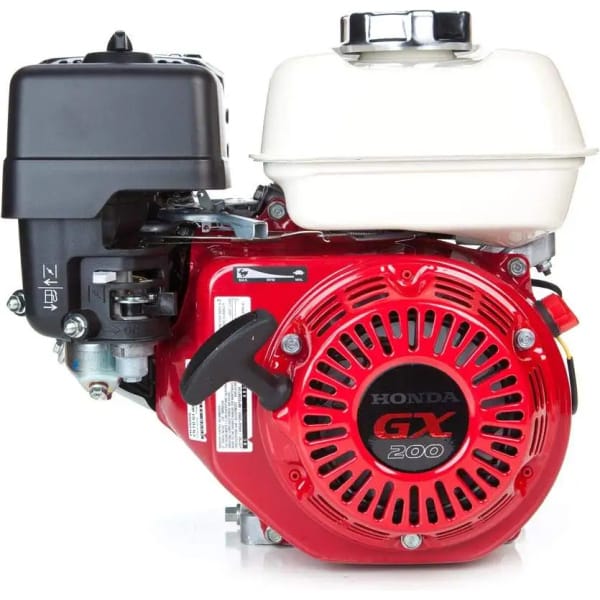

The Honda GX200 TX2 is a 196cc, air-cooled, 4-stroke, horizontal-shaft engine designed for light to medium-duty applications. Producing 6.5 horsepower, it is commonly used in equipment like pressure washers, small generators, and water pumps. The GX200 TX2 features a recoil starter for reliable starting and is known for its durability, fuel efficiency, and easy maintenance, making it a great choice for various outdoor and industrial machinery.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX200-TX2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 41 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Threaded |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 5/8-18″ x 2-7/16″ |
| CRANKSHAFT LENGTH | 2-7/16″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | None |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element Silent |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
