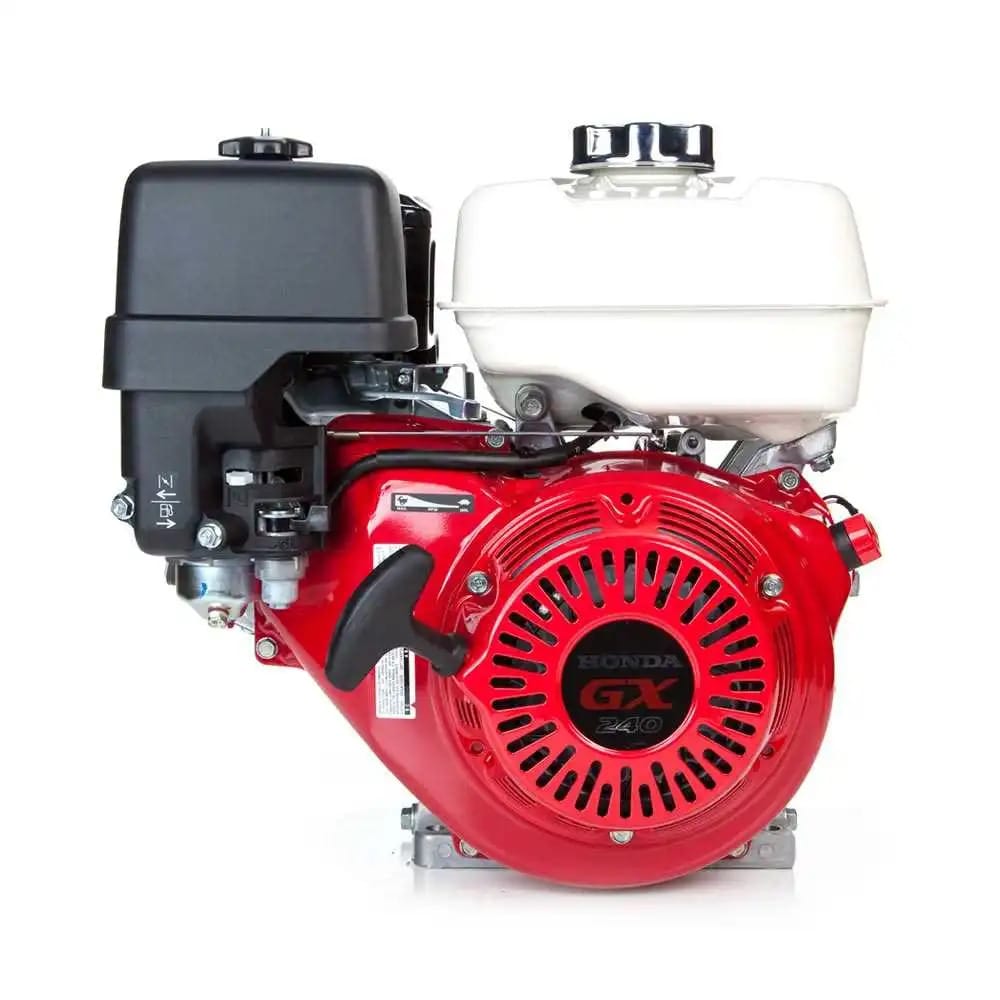

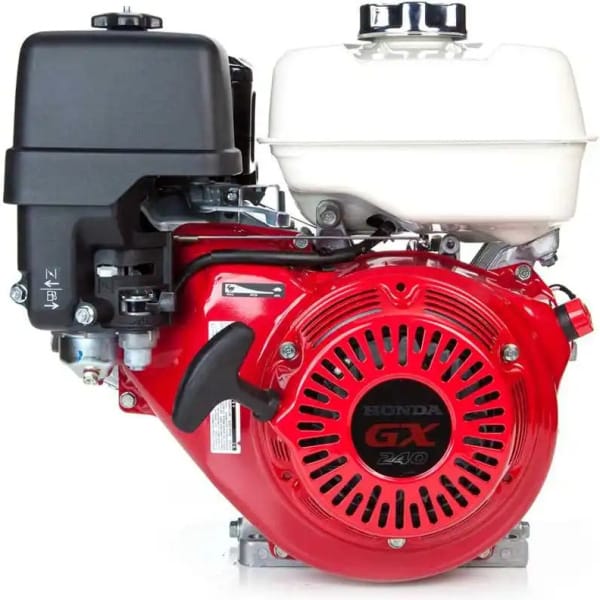

Honda GX240 HA2 (GX240UT2HA2) horizontal OHV 6:1 gear reduction engine is 270cc and puts out 7.9 net HP. This Honda GX has a 1″ x 3.37″ crankshaft. The engine has recoil start, a standard muffler with exhaust pipe protector and spark arrestor, and an oil alert system, but no clutch. Honda GX240 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX240-HA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 71 |
| DISPLACEMENT | 270cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| GEAR REDUCTION | 6:01 |
| CRANKSHAFT DIMENSIONS | 1″ x 3.37″ |
| CRANKSHAFT LENGTH | 3.37″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Float |
| MAX RPM | 3600 |
| BOLT CIRCLE | None |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
