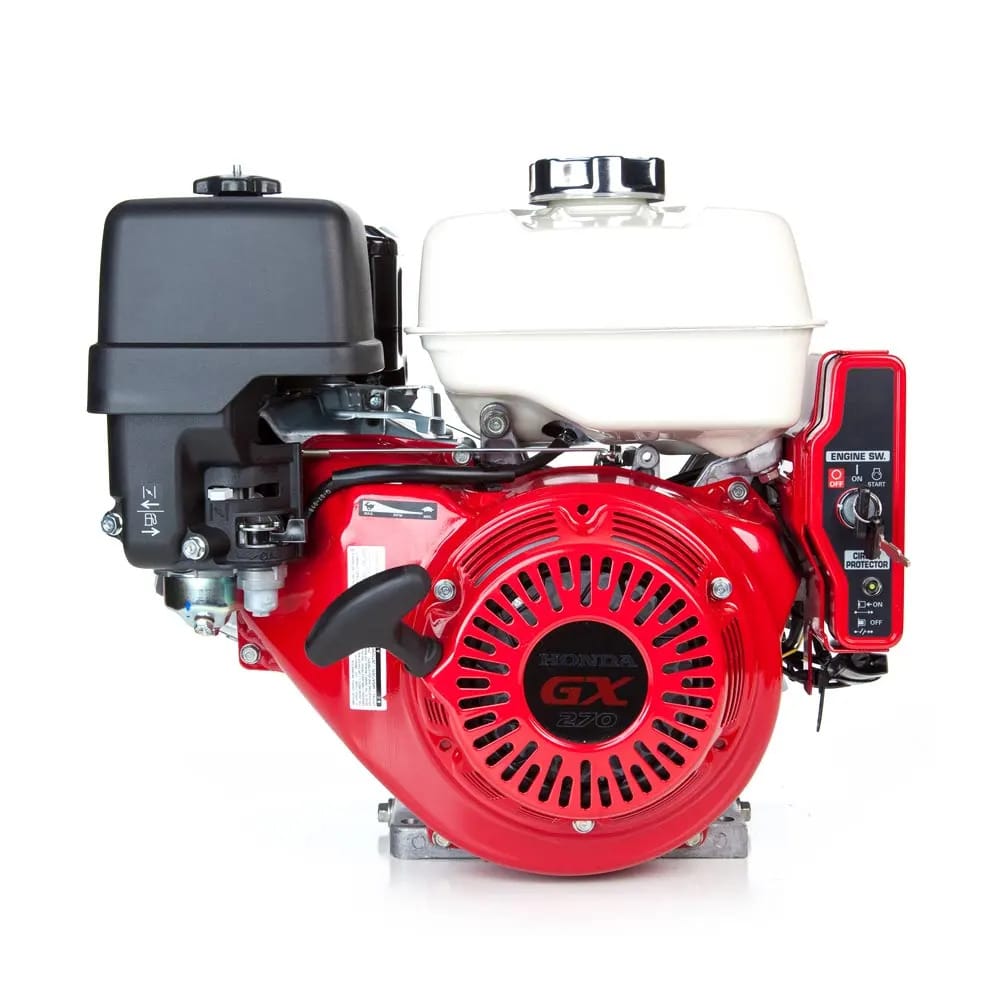

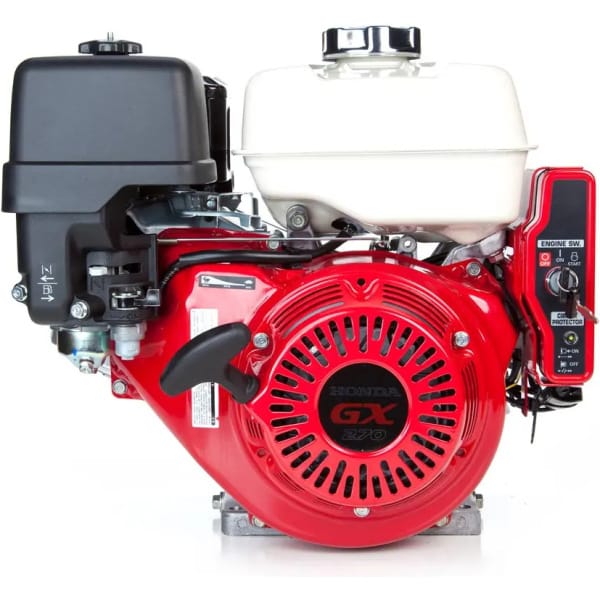

Honda GX270 PAE2 Horizontal Engine

Honda GX270 PAE2 is a powerful 270cc, air-cooled, 4-stroke, horizontal-shaft engine designed for a variety of commercial and industrial applications. It is widely used in equipment like pressure washers, water pumps, generators, and other heavy-duty machinery. The GX270 PAE2 is known for its reliable performance, fuel efficiency, and user-friendly features, making it a popular choice for professionals who demand high performance and durability.

Engine Description:

• Engine Model: Honda GX270 PAE2

• Type: 4-stroke, single-cylinder, overhead valve (OHV), air-cooled

• Displacement: 270cc

• Bore x Stroke: 77mm x 58mm

• Compression Ratio: 8.5:1

• Ignition System: Transistorized ignition (TCI)

• Fuel System: Carburetor, single-choke, diaphragm-type

• Lubrication System: Splash lubrication with oil filter

• Cooling System: Air-cooled

Performance Specifications:

• Maximum Output: 8.0 HP (5.9 kW) @ 3,600 RPM

• Maximum Torque: 19.1 Nm @ 2,500 RPM

• Fuel Consumption: Approx. 1.6 L/h (at 3,600 RPM)

• Fuel Tank Capacity: 5.3 liters

• Oil Capacity: 1.1 liters

• Recommended Fuel: Unleaded gasoline (87 octane or higher)

Starting System:

• Starting System: Recoil starter (manual pull-start)

• Electric Starter: Available (for the PAE2 model with electric start)

Shaft and Mounting:

• Shaft Type: Horizontal shaft with threaded “P” type shaft

• Shaft Diameter: 1 inch (25.4 mm)

• Shaft Length: 2.5 inches (63.5 mm)

• Keyway: Yes, for secure attachment of accessories and machinery

Dimensions and Weight:

• Dimensions (L x W x H): 385mm x 390mm x 418mm

• Dry Weight: 26.5 kg (58.4 lbs)
