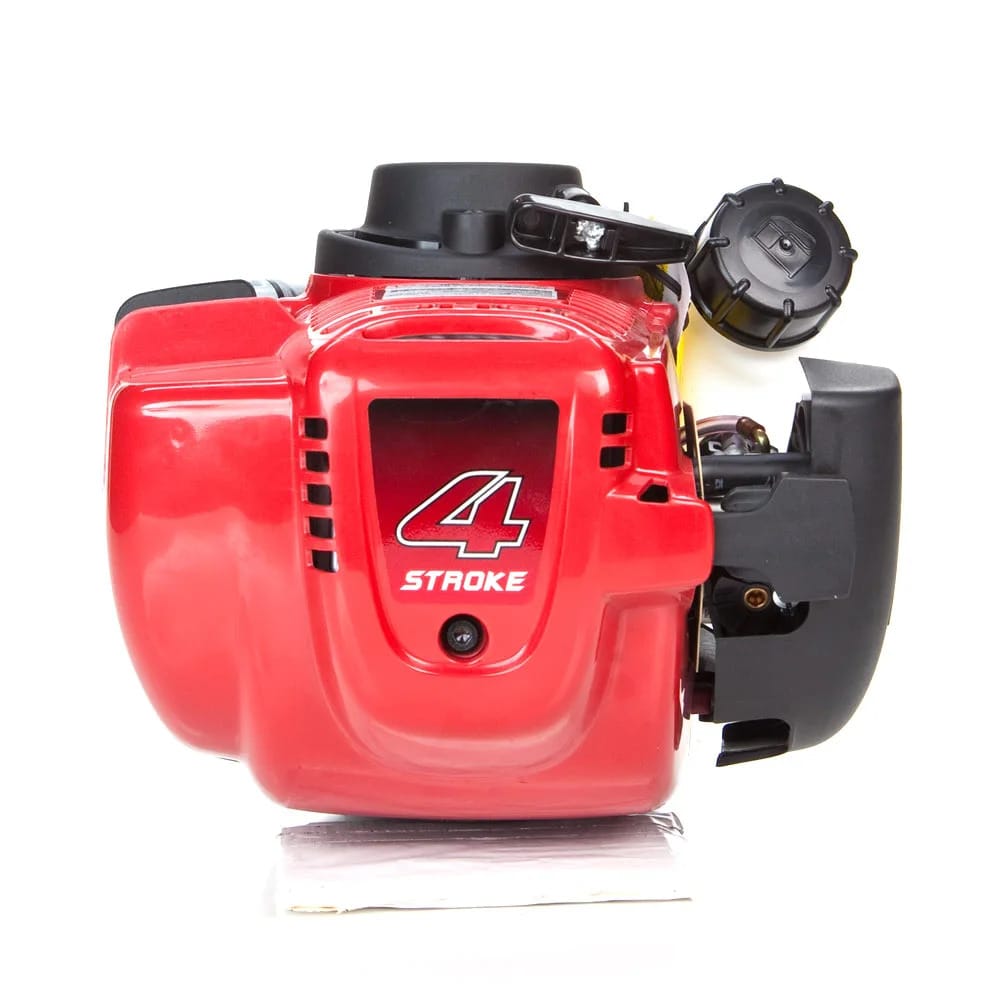

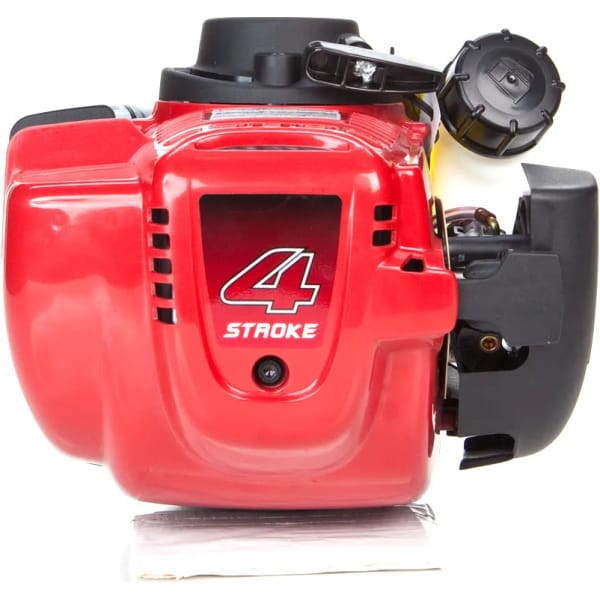

Honda GX35 S3 (GX35NTS3) mini 4-stroke OHC horizontal engine is 35cc and puts out 1.3 net HP. Honda Mini 4-Stroke engines are ultra lightweight but still efficiently deliver a surprising amount of quiet power. Full 360-degree, any-side-up, inclinable technology allows for operation and storage in any position. Common applications include lawn and garden equipment, tillers, pumps, construction equipment and more.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX35-S3 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 11 |
| DISPLACEMENT | 35.8cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | NA – Clutch Attached |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIAMETER | N/A |
| CRANKSHAFT LENGTH | N/A |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | None |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| AIR CLEANER TYPE | Foam Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 3.4 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Diaphragm |
| CHOKE CONTROL | Manual |
| MAX RPM | 7000 |
| BOLT CIRCLE | None |
| NOTES | Engine Notes: |
| PTO HEIGHT | N/A |
