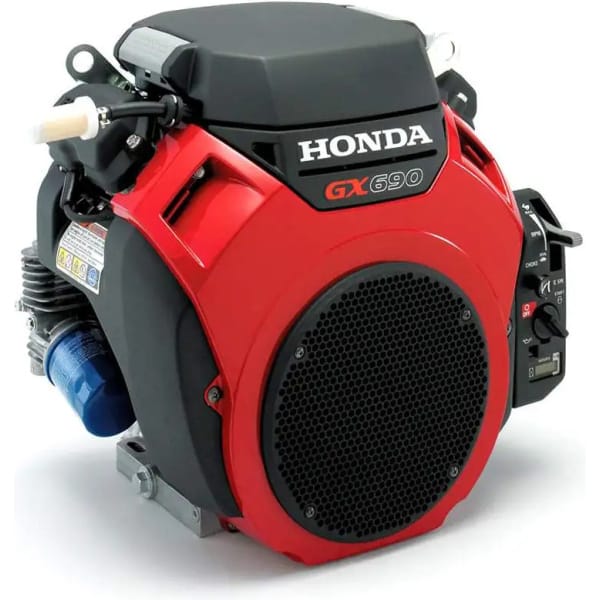

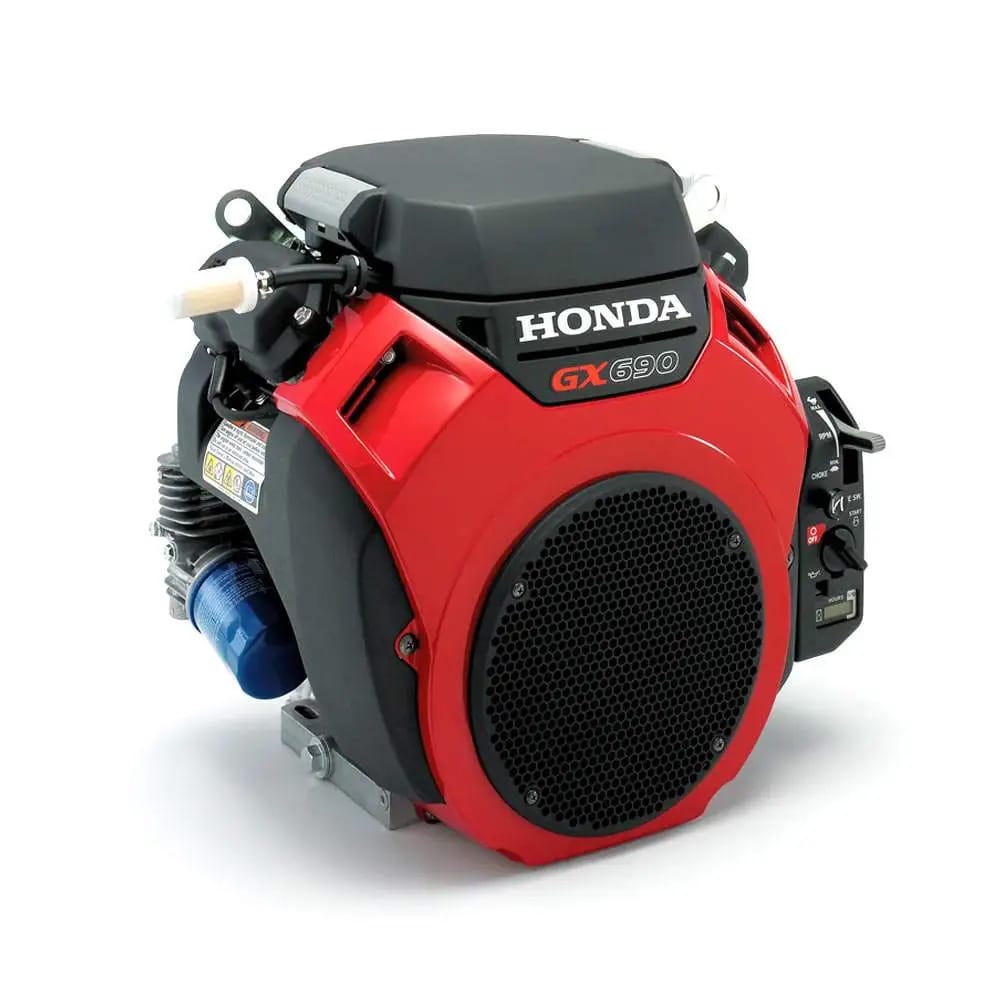

Honda GX690 BAF is a 688cc, V-twin, air-cooled, 4-stroke, horizontal-shaft engine that delivers 22.1 horsepower. It is commonly used in heavy-duty commercial equipment such as large generators, industrial pumps, and construction machinery. Known for its durability, smooth operation, and fuel efficiency, the GX690 BAF provides reliable, high-performance power for demanding tasks in challenging environments.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX690-BAF |
| WARRANTY | 3 Year Limited |
| SHIPPING WEIGHT | 100 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Shift Type Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1-7/16″ x 4.37″ |
| CRANKSHAFT DIAMETER | 1-7/16″ |
| CRANKSHAFT LENGTH | 4.37″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 2 qt |
| LOW OIL ALERT | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CHOKE CONTROL | Manual |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
