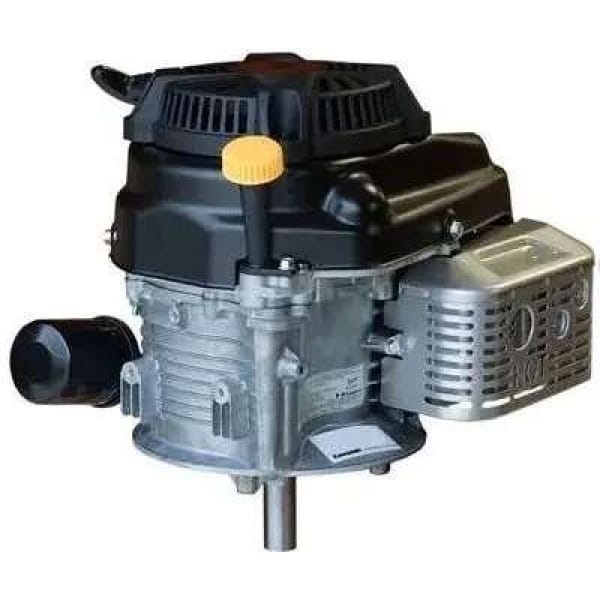

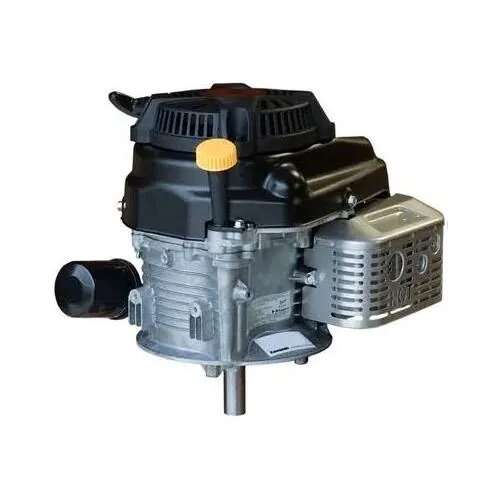

Kawasaki FJ180V-M09-S 179cc, 6 HP, vertical, OHV, 4-cycle single-cylinder engine. This FJ180V KAI engine has a 25mm x 3-5/32″ (80mm) crankshaft, a recoil starter and low tone muffler with guard. A fuel tank is not included with this engine. With features like pressurized lubrication and ball bearing supported crankshafts, Kawasaki FJ Series engines deliver reliable power while keeping the operator comfortable.
| BRAND | Kawasaki |
|---|---|
| MODEL NUMBER | FJ180V-BM09-S |
| WARRANTY | 3 Year Limited |
| SHIPPING WEIGHT | 30 |
| DISPLACEMENT | 179cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Vertical |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 25mm x 3-5/32″ |
| CRANKSHAFT DIAMETER | 25mm |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | No |
| FUEL PUMP | No |
| OIL COOLER | No |
| LOW OIL ALERT | No |
| IGNITION SYSTEM | Flywheel Magneto Transistor |
| CARBURETOR TYPE | Internally Vented |
| MAX RPM | 3600 |
| BOLT CIRCLE | 8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | N/A |
