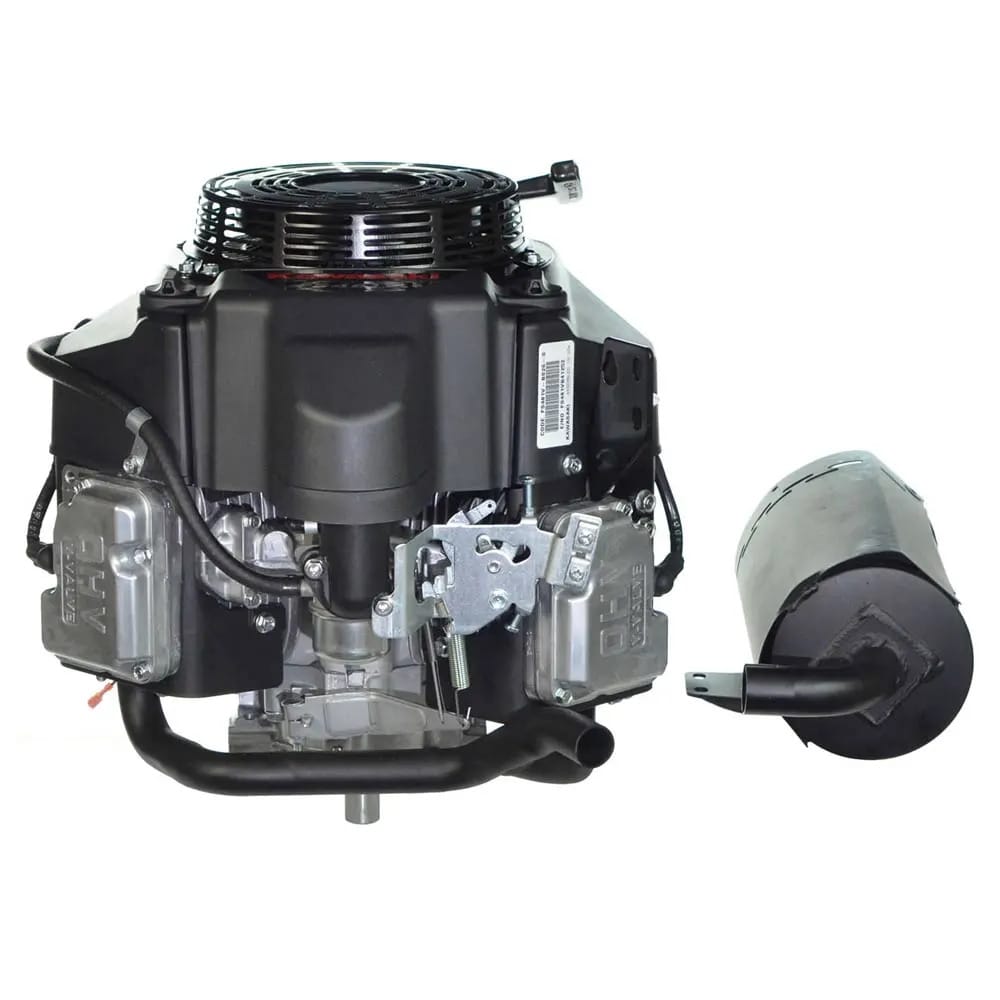

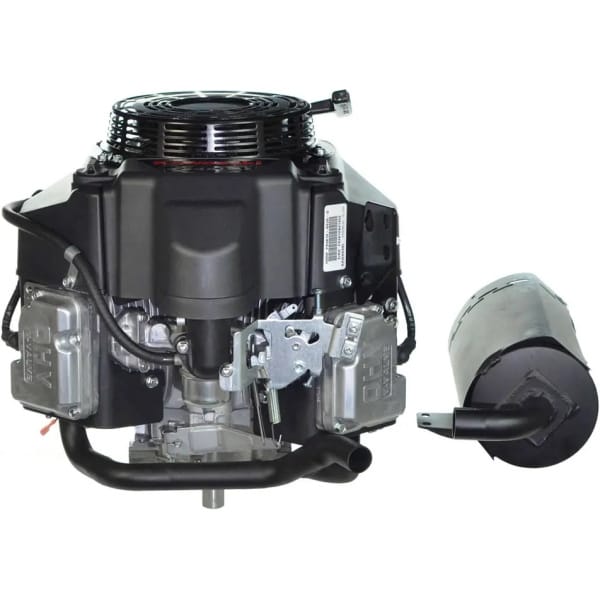

Kawasaki FS481V-S26-S vertical OHV 4-cycle V-Twin engine is 603cc and puts out 14.5 HP (maximum horsepower). This FS481V has a 1″ x 3-5/32″ (80mm) crankshaft, a recoil starter, a clutch coil and includes an oil filter side muffler. Being SAE Power Certified, Kawasaki FS Series engines promise to deliver the reliable power needed to accomplish demanding outdoor tasks while keeping emissions down. Ideal for landscaping applications such as riding mowers.
| BRAND | Kawasaki |
|---|---|
| WARRANTY | 3 Year |
| DISPLACEMENT | 603cc |
| CRANKSHAFT ORIENTATION | Vertical |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIAMETER | 1″ |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL CAPACITY | 1.8 qt |
| CARBURETOR TYPE | Internally Vented, Float Type, Fixed Main Jet, Single Barrel |
| MAX RPM | 3600 |
