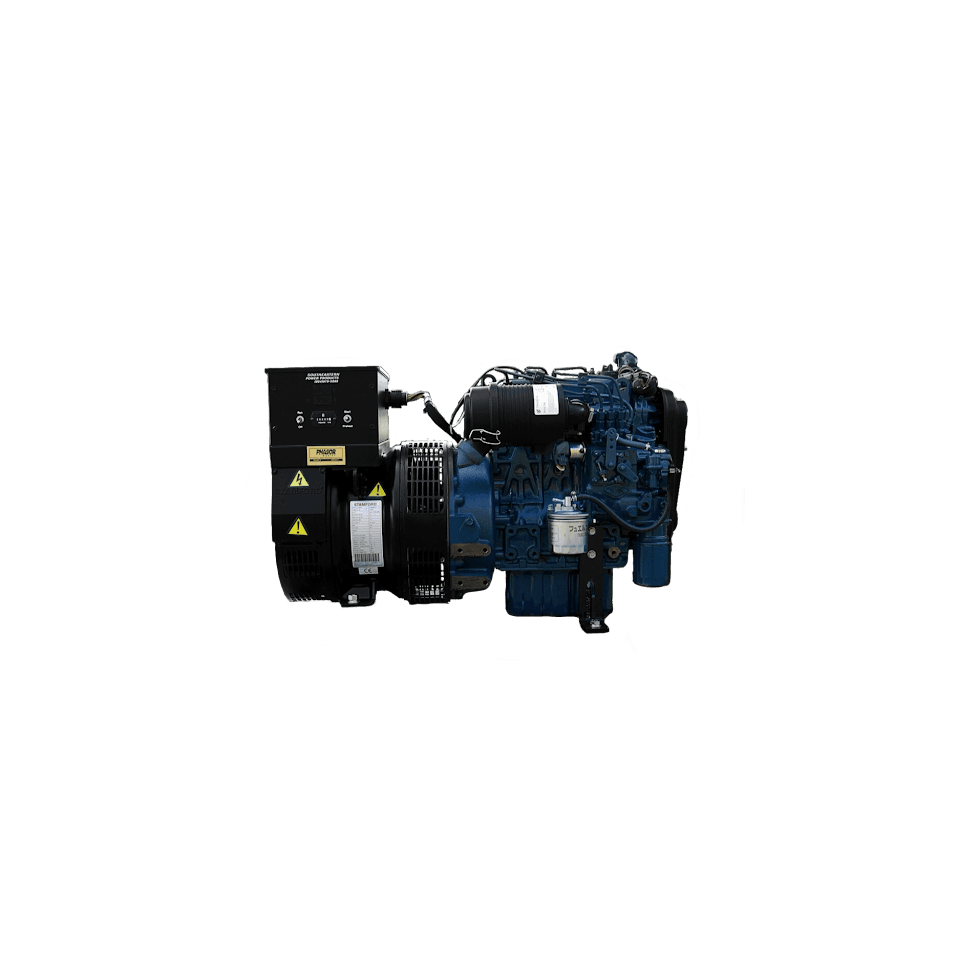

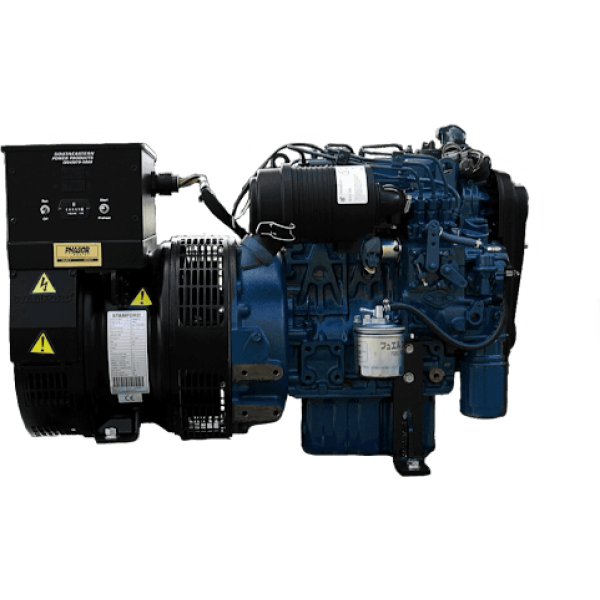

KK3-8.5 Keel Cooled Diesel Generator – 8.5 kW (60 Hz)
The KK3-8.5 KW generator, manufactured by Southeastern Power Products, stands as a pinnacle of technical innovation and reliability in power generation. Powered by a robust Kubota D1105-E3BG engine with three cylinders and 15.4 horsepower, it delivers a power output of 8,500 watts at 120/240 volts in single-phase configuration. Equipped with features such as automatic voltage regulation (AVR), low oil shutdown, and a keel-cooled/hot manifold cooling system, it ensures stable and safe power supply even in demanding conditions. With a compact design measuring 34.0″ x 22.0″ x 29.0″ and weighing 550 lbs, it offers ease of transportation and installation. The KK3-8.5 KW generator is suitable for a wide range of applications, including residential backup power, construction sites, and outdoor events, providing reliable and efficient power generation whenever and wherever needed.
Standard Features
- 12V DC Start / Charging
- Automatic engine shutdown for low oil & high coolant temperature
- Fuel filter
- Fuel transfer pump
- Air intake silencer / Cleaner
- Four point isolation motor mounts
- Heavy duty stell mounting frame
- Single bearing generator
- Brushless excitor
- Start / Stop / Preheat / Hourmeter (mounted on machine)
Specifications of KK3-8.5KW
MODEL | KK3-8.5 KW |
ENGINE KUBOTA | D1105-E3BG |
CYLINDER | 3 |
CUBIC INCH | 68.53 |
BORE & STROKE | 3.07 x 3.09 |
H.P. @ 1800 RPM | 15.4 |
ASPIRATION | NATURAL |
COOLING SYSTEM | KEEL COOLED / HOT MANIFOLD |
EXHAUST 2.0″ | DRY EXHAUST FLANGE |
FUEL INLET | 5/16 |
FUEL RETURN | 3/16 |
DIMENSIONS | L 34.0 x W 22.0 x H 29.0 |
WEIGHT | 550LBS |
MODEL | STAMFORD/NEWAGE |
OUTPUT VOLTS | 120 / 240 / SINGLE PHASE |
OUTPUT AMPS | 70.83 x 35.42 |
OUTPUT WATTS | 8,500 |
