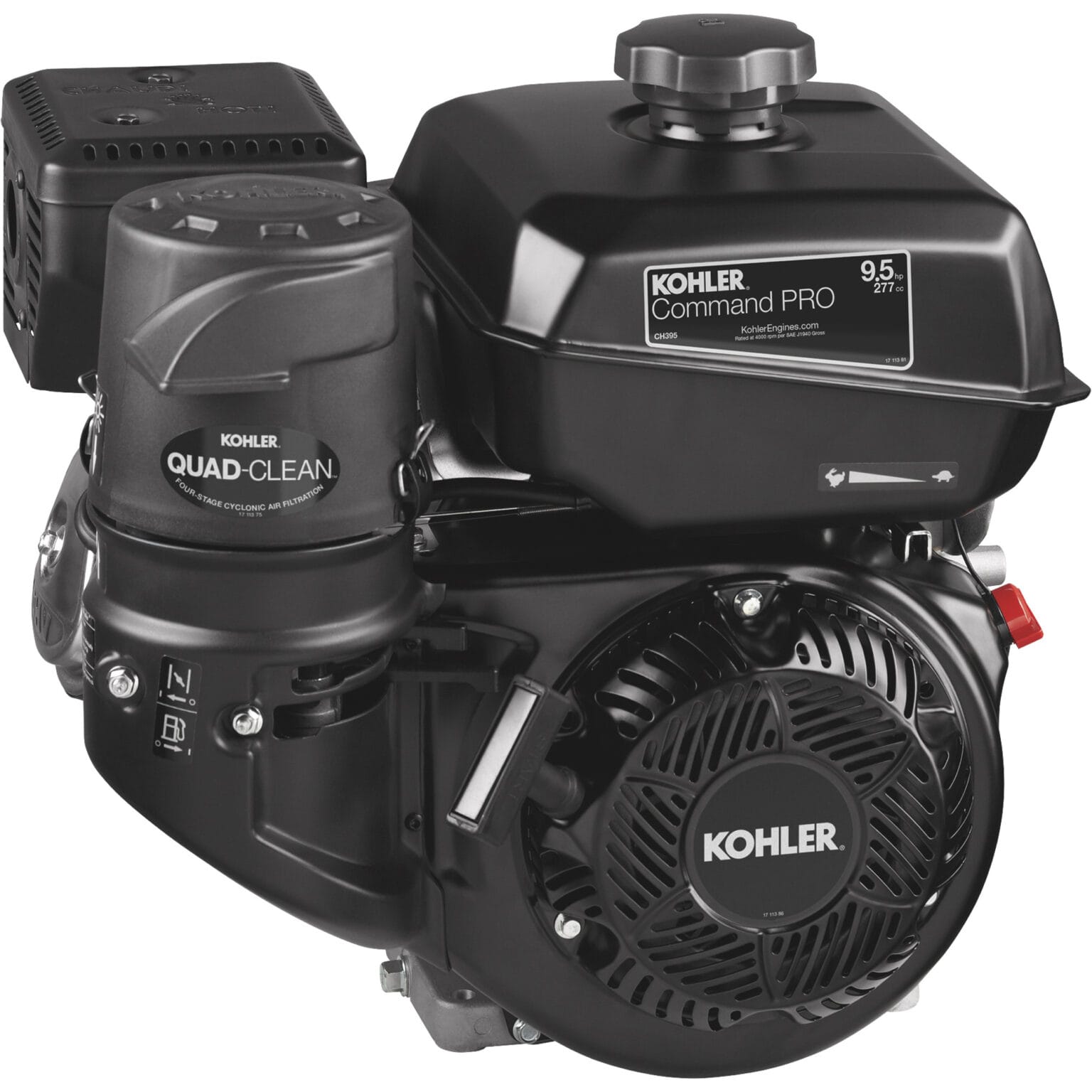

Kohler Command Pro OHV Horizontal Engine, 277cc Model PACH3953149, is a single-cylinder, air-cooled, 4-stroke engine designed for heavy-duty outdoor equipment. Delivering reliable power and excellent fuel efficiency, this engine is commonly used in applications such as lawn mowers, pressure washers, and other commercial-grade equipment. Known for its durability, smooth operation, and ease of maintenance, the Command Pro engine provides consistent performance for demanding tasks in tough environments.
| Item# | 56104 |
| Brand | Kohler Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 69.0 lbs |
| Engine Displacement | 277 cc |
| Engine Type | OHV |
| Net Power Output | 9.5 HP |
| Start Type | Recoil |
| Shaft Diameter | 1 in |
| Shaft Length | 3.49 in |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.25 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 7/16-20 UNF |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Hardened |
| PTO Height | 5.25 in |
| Bearing Type | Ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron liner |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Bore | 3.1 in |
| Stroke | 2.3 in |
| Air Cleaner Type | Quad Clean cyclonic |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 7.39 qt |
| Fuel Filter | (3) Fuel filters: fill neck, in tank, carburetor inlet |
| Oil Capacity | 1.16 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Mechanical |
| Carburetor | Float |
| Throttle Control | Engine-mounted |
| Choke Control | Easy access throttle, choke/shutoff |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 5, 6.5 in |
| Mounting Base Length | 7.69 in |
| Mounting Base Width | 3.78 in |
| Product Weight | 69 lb |
| Dimensions L x W x H (in.) | 15.9 x 16.8 x 16.7 in |
