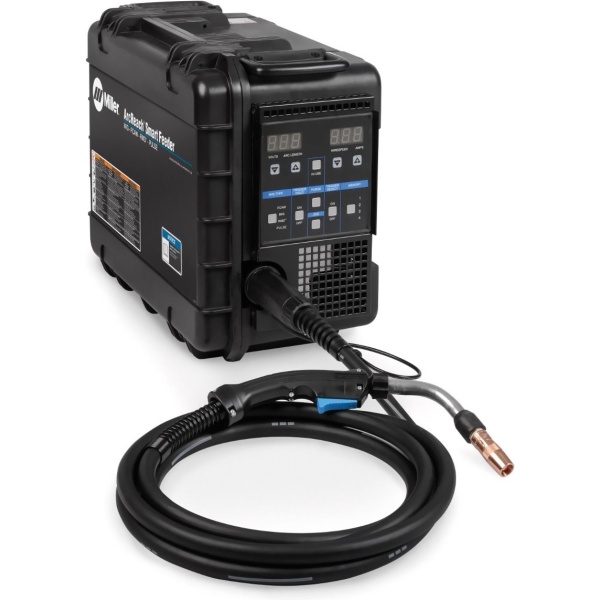

Miller Arcreach Smart Feeder With Pipeworx Mig Gun 951733

Miller Arcreach Smart Feeder With Pipeworx Mig Gun 951733 Specs

• Brand: Miller
• Model: ArcReach Smart Feeder with PipeWorx MIG Gun
• MPN (Part Number): 951733
• Processes Supported: RMD, Pulsed MIG (GMAW-P), Conventional MIG, Flux-Cored (FCAW)
• Input Power: ArcReach (via weld cable, no control cable required)
• Wire Feed Speed Range: 50–800 IPM (1.3–20.3 m/min)
• Compatible Wire Sizes: 0.023–5/64 in (0.6–2.0 mm)
• Drive System: 4-roll drive with dual gear-driven rollers
• Display: Digital interface with preset memory and parameter recall
• Arc Control: Remote voltage and wire feed speed control via ArcReach
• Gun Included: PipeWorx MIG Gun (included)
• Weld Cable Length Compatibility: Up to 200 ft (60 m)
• Housing: Rugged, field-ready composite case
• Duty Cycle: 100% at 425 Amps
• Weight: 41.5 lbs (18.8 kg)
• Dimensions: 17.75 in H x 13.75 in W x 23.5 in D
• Portability: Built-in lift hook and handle
• Compatible Power Sources: Miller XMT, Trailblazer with ArcReach, Dimension, and Big Blue
• Certifications: CSA, CE
• Applications: Pipe welding, field fabrication, oil & gas, shipbuilding
• Warranty: 3-Year Miller True Blue Warranty
• Google Product Category: 2920 (Welding Machines)
• Country of Origin: USA
