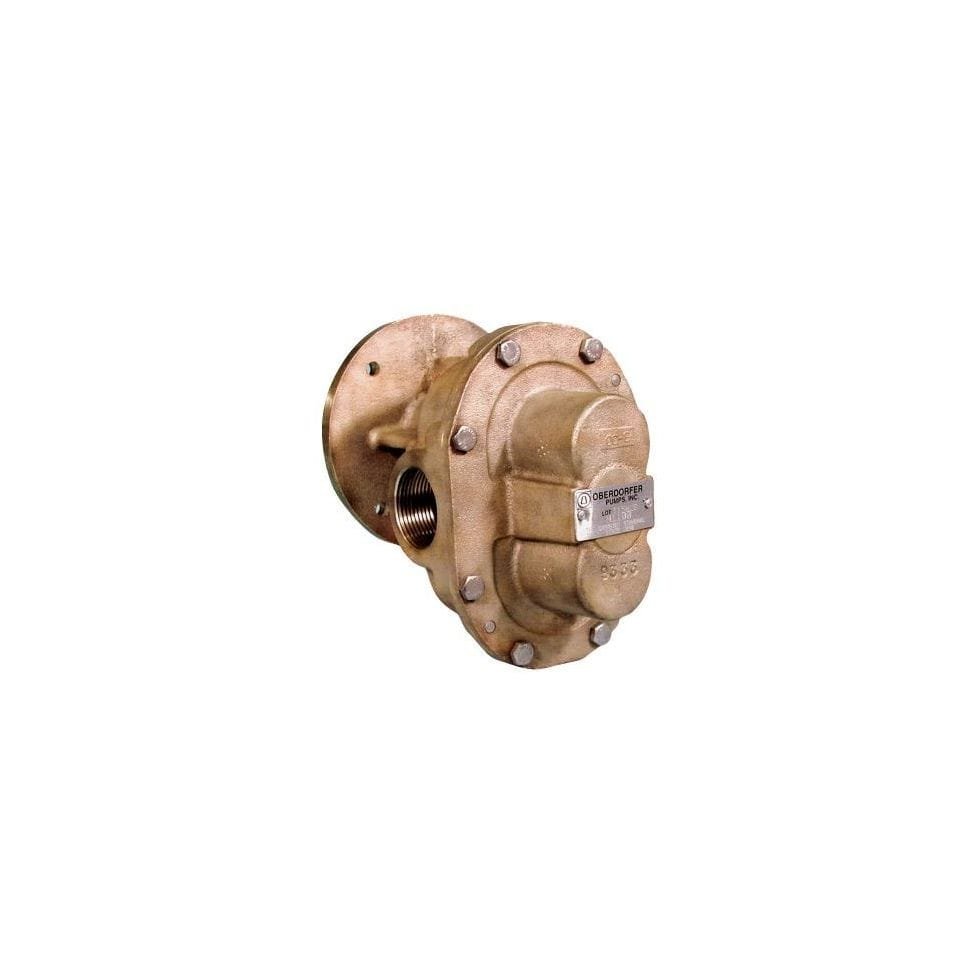

Oberdorfer N1100 Gear Pump
The Oberdorfer N1100 Gear Pump is an excellent choice for transferring viscous fluids like oil, fuels, and coolants with high accuracy and pressure capability. This bronze gear pump provides consistent flow regardless of pressure fluctuations, making it ideal for lubrication, fuel transfer, and hydraulic applications.
The Oberdorfer N1100 Gear Pump features bronze housing and stainless steel shafts for excellent resistance to corrosion and wear. Its compact size and robust construction ensure reliability in tight spaces. Perfect for both marine engine rooms and industrial machinery, this pump excels where precise metering or high-lift suction is required. Choose the Oberdorfer N1100 Gear Pump for a long-lasting, heavy-duty gear pump solution. Shop now for superior positive displacement performance.
| Product Details | |
|---|---|
| Model | N1100 |
| Brand | Oberdorfer |
| Pump Type | Positive Displacement Gear Pump |
| Flow Rate | Up to 3.4 GPM (12.9 LPM) @ 1725 RPM |
| Max Pressure | Up to 150 PSI (10.3 bar) |
| Rotation | Reversible (CW or CCW) |
| Inlet/Outlet Size | 3/8″ NPT |
| Housing Material | Bronze |
| Gears | Bronze |
| Shaft Material | Stainless Steel |
| Seal Type | Mechanical Seal (Carbon-Ceramic) |
| Drive Type | Pedestal Mount |
| Max Liquid Temperature | 212°F (100°C) |
| Viscosity Range | Up to 500 SSU (approx. 100 cSt) |
| Applications | Lubrication systems, fuel transfer, oil circulation, hydraulic fluids |
| Warranty | 1-Year Limited Manufacturer Warranty |
