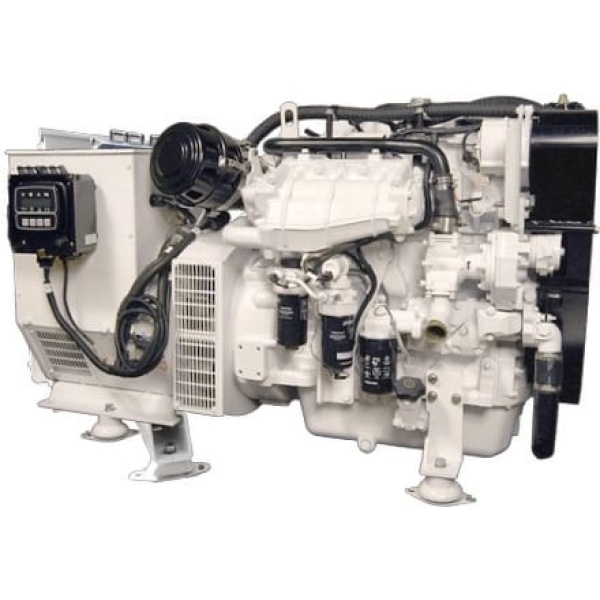

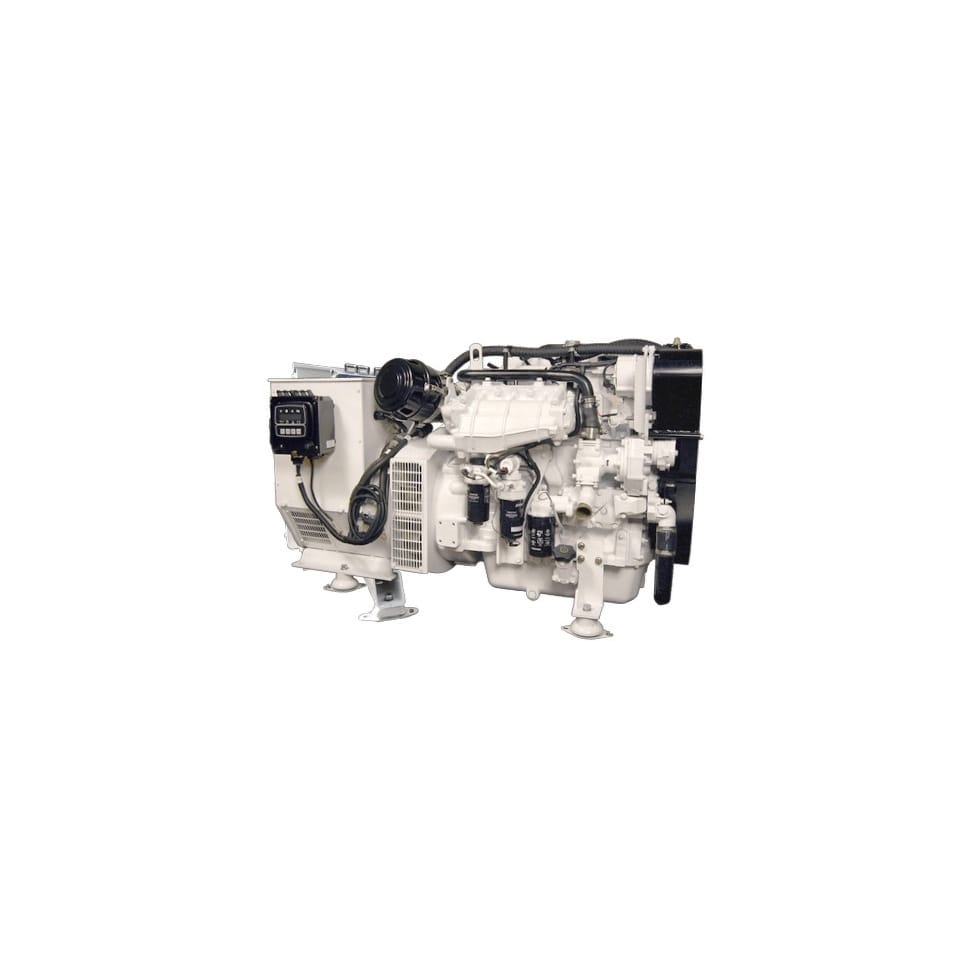

Phasor JD4-99.0kW Diesel Marine Generator – 99.0kW (60 Hz) – 1800 RPM
Standard Features
- Single Bearing Brushless Generator
- ± 1% Solid-State Voltage Regulation
- Low 1,800 RPM Operating Speed
- Safety Shutdown Systems
- Four Points isolation Mounts
- Automatic Low Oil Pressure and High Water Temperature
- Fresh Water Heat Exchanger Cooling
- Zinc Anode in Heat Exchanger
- Water Cooled manifold and Stainless Steel Exhaust Elbow
- Direct Drive Sea Water Pump
- Racor Fuel Filter – 2 Micron
- Air Intake Cleaner / Silencer
- Electric Fuel Transfer Pump
- Spin-On Lube Oil Filter
- 12 Volt Starting
- 12 Volt Battery Charging Alternator
- J-Can Electronic Control Panel
- Awl-Craft 2000 Urethane Finish
- 5 Year Limited Warranty
Specifications
| Kubota Model | JD4-99.0KW |
| Engine | JOHN DEERE 4045AFM85 |
| KW Rating at 60 Hz | 99.0 Kw |
| KW Rating at 50 Hz | 84.0 Kw |
| Cylinders | 4 |
| Cubic Inch Displacement | 273 |
| Electric End | Newage |
| Bore x Stroke | 4.21″ x 5.00″ |
| Dimensions (LxWxH) without enclosure | 65″ x 32.0″ x 38″ |
| Dimensions (LxWxH) with enclosure | 68.0″ x 38.0″ x 41.0″ |
| Weight | 2584 |
| Output (volts) | 208 |
| Output (amps) | 276 |
| Output (watts) | 99,000 |
| Fuel Consumption @ 50% Load | 4.3 GPH” |
| Fuel Consumption @ 100% Load | 7.6 GPH |
| Exhaust Dia. | 4.0″ |
