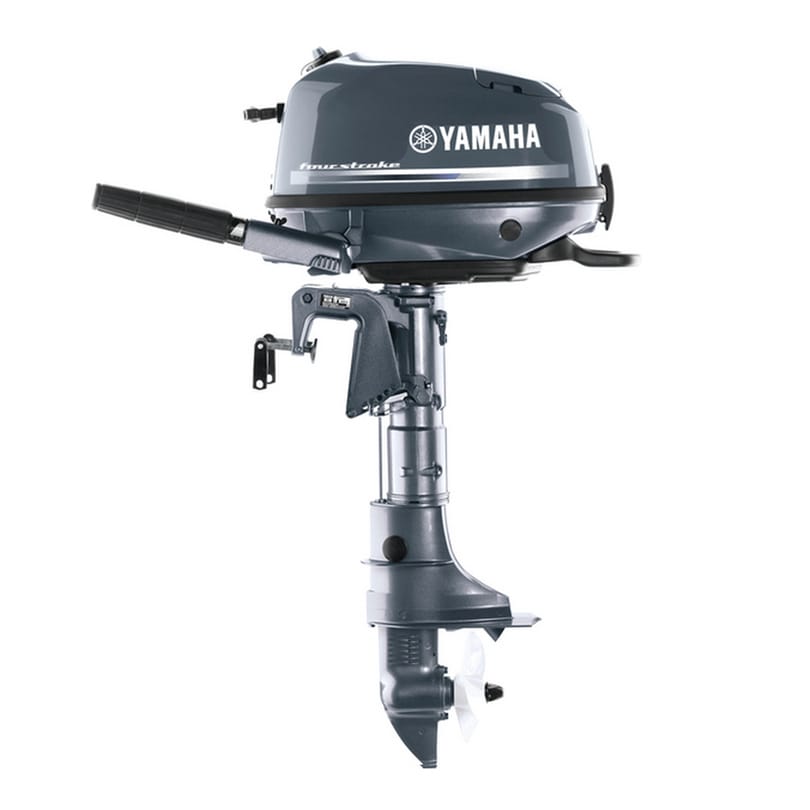

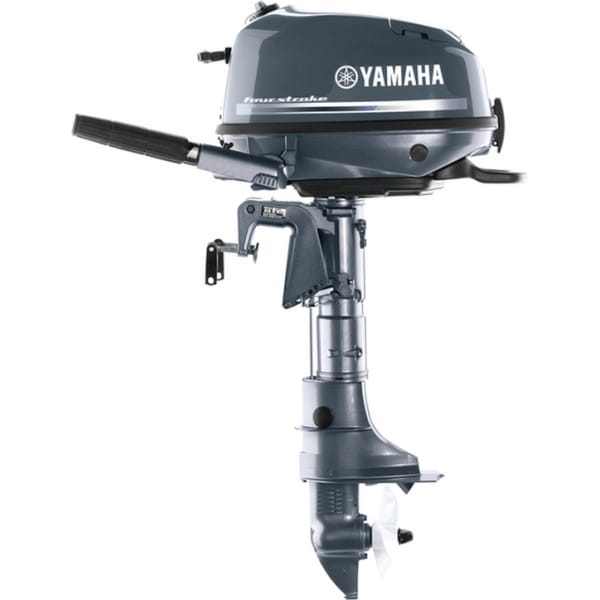

Yamaha F6SMHA 6 HP Outboard Motor

The Yamaha F6SMHA is a 6 horsepower (HP), four-stroke outboard motor designed for smaller boats, tenders, and as a secondary engine for larger vessels. Known for its lightweight design, fuel efficiency, and quiet operation, the F6SMHA is ideal for fishing, recreational boating, and other water activities. The motor is suitable for both saltwater and freshwater environments, providing reliable power for various types of boating adventures. It’s designed to be easy to transport, maintain, and operate.

Key Specifications:

• Engine Type: 4-stroke, single-cylinder, SOHC (Single Overhead Cam)
• Horsepower: 6 HP
• Displacement: 139 cc
• Bore x Stroke: 56 mm x 43 mm
• Fuel System: Carburetor
• Ignition System: CDI (Capacitor Discharge Ignition)
• Starting System: Manual start
• Cooling System: Water-cooled
• Shaft Length: 15 inches (Short Shaft)
• Weight: Approximately 27 kg (59 lbs)
• Dimensions (LxWxH): 480 mm x 345 mm x 1060 mm
• Fuel Tank Capacity: Typically uses an external, portable fuel tank (tank not included)
• Oil Capacity: 0.6 liters
• Max RPM Range: 5000-6000 RPM
• Gear Ratio: 2.08:1
• Trim and Tilt: Manual tilt with multiple positions
• Recommended Fuel: Regular unleaded gasoline

Features:

• Lightweight and Portable: The F6SMHA weighs approximately 27 kg (59 lbs), making it highly portable and easy to handle, perfect for small boats, dinghies, or as a backup motor for larger vessels.
• Fuel Efficiency: As a four-stroke engine, the F6SMHA is designed to be fuel-efficient, enabling longer trips with fewer refueling stops.
• Smooth and Quiet Operation: The F6SMHA operates with minimal noise and vibration, delivering a smooth, quiet boating experience.
• Corrosion-Resistant Construction: Built with corrosion-resistant materials, the F6SMHA is ideal for use in both saltwater and freshwater conditions.
• Manual Tilt System: The manual tilt allows for easy adjustments with multiple tilt positions, ideal for different water conditions or storage purposes.
• Simple Maintenance: The F6SMHA is designed for easy maintenance with simple access to essential components for routine servicing.
• Eco-Friendly: The motor meets modern emission standards and offers cleaner operation, making it an environmentally friendly option for boaters.
• Reliable Starting: Thanks to the Yamaha CDI ignition system, the F6SMHA provides reliable, easy starting in various conditions.
