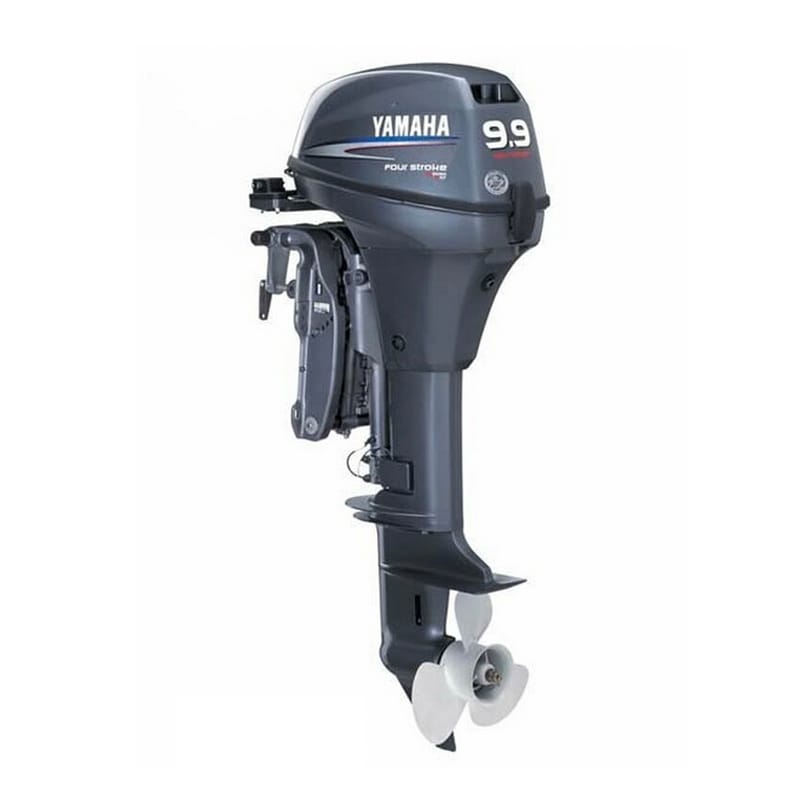

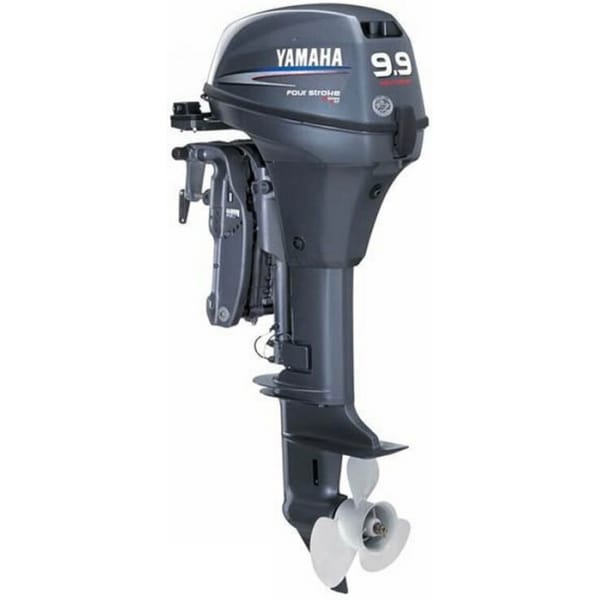

Yamaha T9.9LPB 9.9 HP High Thrust Outboard Motor

The Yamaha T9.9LPB is a 9.9 horsepower (HP) high-thrust outboard motor designed for boats that need strong, reliable propulsion, particularly at slow speeds or when maneuvering under heavy loads. The LPB designation indicates that the motor has a long shaft (20 inches) and is optimized for high-thrust performance. This motor is perfect for use on pontoons, larger dinghies, commercial vessels, or any boat that requires extra power and torque for slow-speed maneuvering or heavy-duty tasks.

Key Specifications:

• Engine Type: 4-stroke, single-cylinder, SOHC (Single Overhead Cam)
• Horsepower: 9.9 HP
• Displacement: 212 cc
• Bore x Stroke: 56 mm x 50 mm
• Fuel System: Carburetor
• Ignition System: CDI (Capacitor Discharge Ignition)
• Starting System: Manual start
• Cooling System: Water-cooled
• Shaft Length: 20 inches (Long Shaft)
• Weight: Approximately 60 kg (132 lbs) for the long shaft version
• Dimensions (LxWxH): 992 mm x 380 mm x 1115 mm
• Fuel Tank Capacity: Typically uses an external, portable fuel tank (tank not included)
• Oil Capacity: 1.1 liters
• Max RPM Range: 5000-6000 RPM
• Gear Ratio: 2.42:1 (high thrust)
• Trim and Tilt: Manual tilt with 5 adjustable positions
• Recommended Fuel: Regular unleaded gasoline

Features:

• High Thrust Gear Ratio: The T9.9LPB features a 2.42:1 gear ratio, designed specifically for high-thrust applications. This provides enhanced low-end torque, making it ideal for slow-speed maneuvering, pushing larger boats, or handling heavy loads.
• Corrosion-Resistant Design: Built with Yamaha’s corrosion-resistant materials, the T9.9LPB is suitable for both saltwater and freshwater use, offering long-lasting durability even in harsh conditions.
• Fuel Efficiency: The motor’s four-stroke engine provides excellent fuel economy, allowing boaters to stay on the water longer without worrying about frequent refueling.
• Smooth, Quiet Operation: Yamaha’s engineering ensures that the T9.9LPB runs with minimal noise and vibration, offering a quiet and smooth boating experience.
• Manual Tilt System: Equipped with a manual tilt system, the T9.9LPB allows for 5 adjustable positions, enabling boaters to adjust the motor’s angle based on water conditions or for storage.
• Lightweight and Easy to Handle: Weighing about 60 kg (132 lbs) for the long shaft version, the T9.9LPB is light enough for easy transport while providing the power and thrust needed for various marine tasks.
• Easy Maintenance: The design of the T9.9LPB makes it easy to access key components for routine maintenance, ensuring simple and effective care of the engine.
• Eco-Friendly: Meets modern emission standards, offering an environmentally friendly solution without sacrificing performance.
