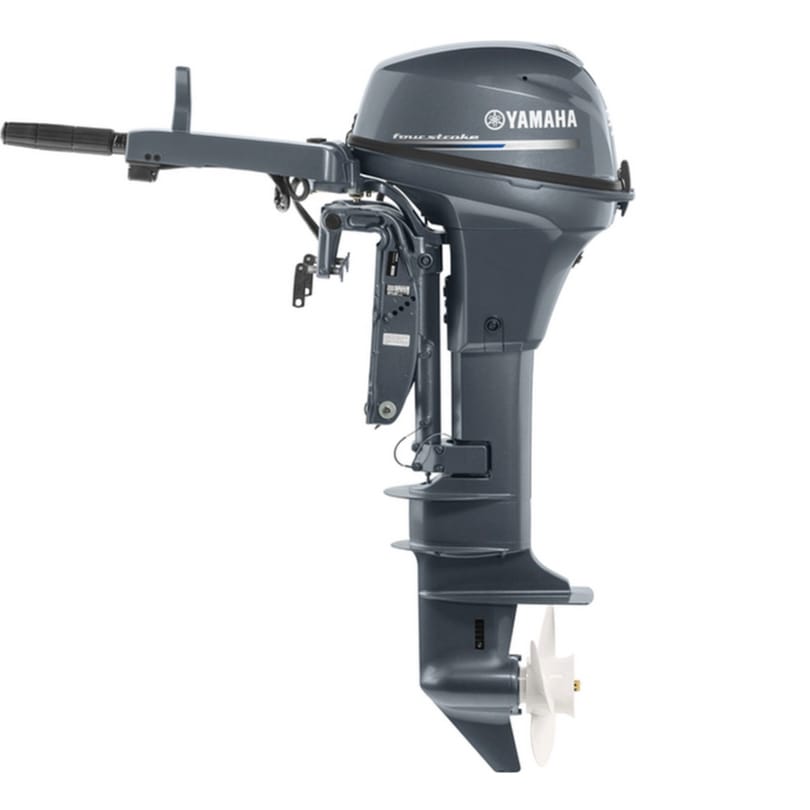

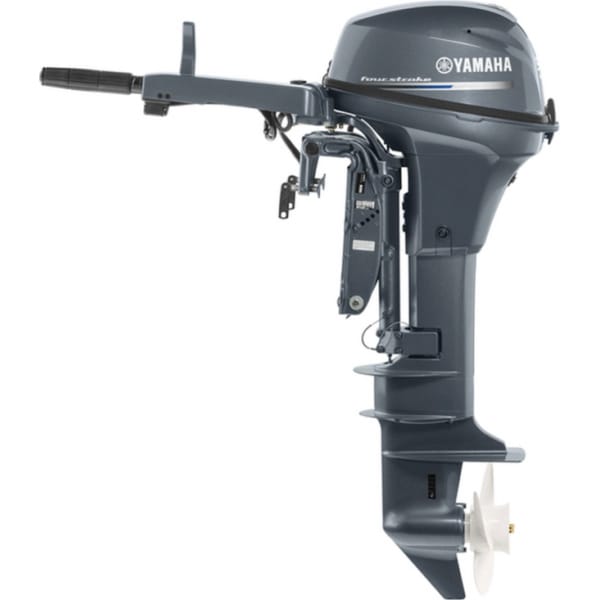

Yamaha T9.9XWHB 9.9 HP High Thrust Outboard Motor

The Yamaha T9.9XWHB is a 9.9 horsepower (HP) high-thrust outboard motor designed to deliver excellent low-end torque and strong propulsion, particularly in slow-speed or heavy-load situations. The XWHB model designation indicates that it is equipped with a high-thrust gear ratio and is designed for use on boats that require additional power at low speeds. This motor is ideal for applications such as pontoons, larger dinghies, and commercial boats. Known for its durability, fuel efficiency, and smooth operation, the T9.9XWHB offers reliable performance in both saltwater and freshwater environments.

Key Specifications:

• Engine Type: 4-stroke, single-cylinder, SOHC (Single Overhead Cam)
• Horsepower: 9.9 HP
• Displacement: 212 cc
• Bore x Stroke: 56 mm x 50 mm
• Fuel System: Carburetor
• Ignition System: CDI (Capacitor Discharge Ignition)
• Starting System: Manual start
• Cooling System: Water-cooled
• Shaft Length: 20 inches (Long Shaft)
• Weight: Approximately 60 kg (132 lbs) for the long shaft version
• Dimensions (LxWxH): 992 mm x 380 mm x 1115 mm
• Fuel Tank Capacity: Typically uses an external, portable fuel tank (tank not included)
• Oil Capacity: 1.1 liters
• Max RPM Range: 5000-6000 RPM
• Gear Ratio: 2.42:1 (high thrust)
• Trim and Tilt: Manual tilt with 5 adjustable positions
• Recommended Fuel: Regular unleaded gasoline

Features:

• High Thrust Gear Ratio: The T9.9XWHB features a 2.42:1 gear ratio, specifically engineered for high-thrust applications. This gear ratio provides more torque at low speeds, making it ideal for boats that need extra push, especially when dealing with heavy loads or when maneuvering at slow speeds.
• Corrosion-Resistant Construction: Built to withstand the harshest conditions, the T9.9XWHB is made with high-quality, corrosion-resistant materials, making it suitable for both saltwater and freshwater applications.
• Fuel Efficiency: Yamaha’s four-stroke engine technology ensures that the T9.9XWHB runs efficiently, providing boaters with excellent fuel economy for longer trips and fewer refueling stops.
• Smooth and Quiet Operation: The engine is designed to run smoothly with minimal noise and vibration, contributing to a quieter and more comfortable boating experience.
• Manual Tilt System: The T9.9XWHB is equipped with a manual tilt system that offers 5 adjustable positions, allowing for flexibility in adjusting the motor’s angle to suit different water conditions or to make storage easier.
• Lightweight and Easy to Transport: Weighing around 60 kg (132 lbs) for the long shaft version, this motor is relatively lightweight for its power class, making it easy to handle and transport without sacrificing performance.
• Ease of Maintenance: The T9.9XWHB is designed for easy upkeep, with simple access to key components, making it easier for boaters to perform routine maintenance and service tasks.
• Environmental Compliance: Yamaha has engineered the T9.9XWHB to meet modern emissions standards, ensuring that the motor is eco-friendly and provides clean, efficient power.
